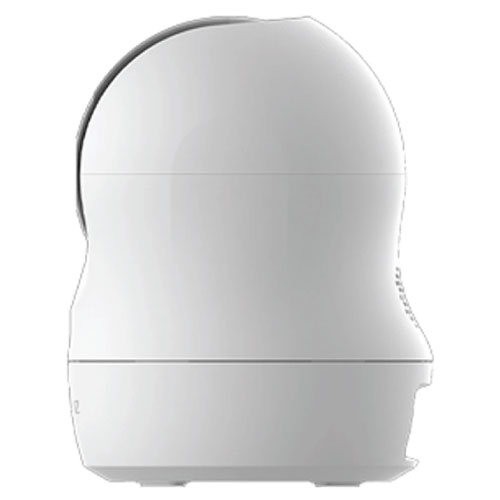

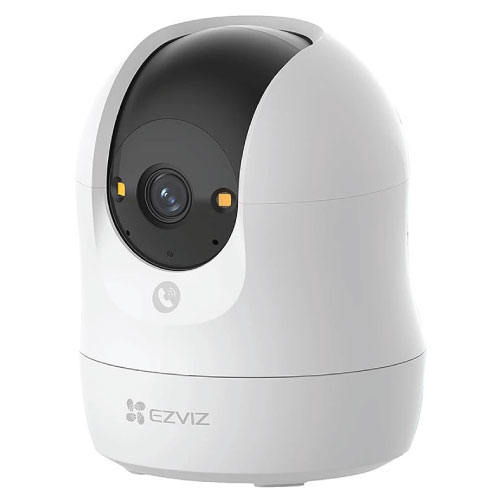

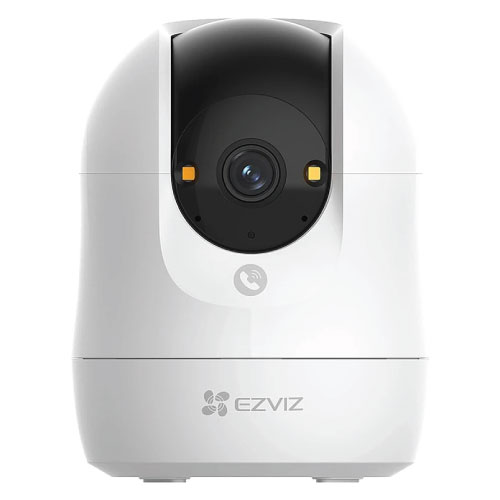

Ezviz CS-C6N G1 3K (4mm) (5MP) Wi-Fi PT IP Camera
- Usage: Indoor
- Form-Factor: Dome
- Mega Pixels (MP): 5.0
- Night Vision Mode: Color
- Working Distance: Unmentioned
- Color: White
Product Description
| Specifications | |
|---|---|
| Model | CS-C6N-R200-1Q5WFL |
| Camera | |
| Image Sensor | 1/3″ Progressive Scan CMOS |
| Shutter Speed | Self-adaptive shutter |
| Lens | 4mm@F1.6, view angle: 105°(Diagonal), 88° (Horizontal), 46°(Vertical) |
| Lens Mount | M12 |
| Day & Night | IR-cut filter with auto-switching |
| DNR | 3D DNR |
| WDR | WDR |
| Compression | |
| Video Compression | H.264 / H.265 |
| Video Bit Rate | Adaptive bit rate |
| Image | |
| Max. Resolution | 3K (2880 × 1620） |
| Frame Rate | Self-adaptive during network transmission |
| Network | |
| Smart Alarm | Motion Detection, AI-Powered Human Shape Detection |
| Wi-Fi Pairing | AP pairing |
| Protocol | EZVIZ Cloud Proprietary Protocol |
| Interface Protocol | EZVIZ Cloud Proprietary Protocol |
| Interface | |
| Storage | Supports microSD card (max. 512 GB) |
| Power | Type-C |
| Wired Network | RJ45 × 1 (10 M / 100 M self-adaptive Ethernet port) |
| Wi-Fi | |
| Standard | IEEE802.11a, 802.11b, 802.11g, 802.11n, |
| Frequency Range | 2.4 GHz: 2.4 GHz ~ 2.4835 GHz |
| Channel Bandwidth | 2.4G: Supports 20MHz |
| Security | WPA/WPA2, WPA-PSK/WPA2-PSK |
| Transmission Rate | 11b 11Mbps, 11g 54Mbps, 11n MCS7, 11a 54Mbps, 11ac MCS9.11ax MCS11 |
| Output Power (EIRP) | 19 dBm |
| Antenna Gain | 1.9 dBi |
| General | |
| Operating Conditions | -10°C to 45°C (14°F to 113 °F )
Humidity 95% or less (non-condensing) |
| Power Supply | DC 5V / 2A |
| Power Consumption | Max. 8 W |
| IR Range | Max. 10 meters (32.81ft) |
| Dimensions | 88 × 88 × 113 mm (3.46 × 3.46 × 4.45 inch) |
| Packaging Dimensions | 103 × 103 × 168 mm (4.06 × 4.06 × 6.61 inch) |
| Net Weight | 222 g (0.49 lb) |
| In the box | |
| In the box | – C6N G1 Camera |
| – Power Adapter | |
| – Power Cable | |
| – Drill Template | |
| – Mounting Plate | |
| – Screw Kit | |
| – Regulatory Information × 2 | |
| – Quick Start Guide | |
| Certifications | |
| Certifications | CE / UL / WEEE / REACH / RoHS |
