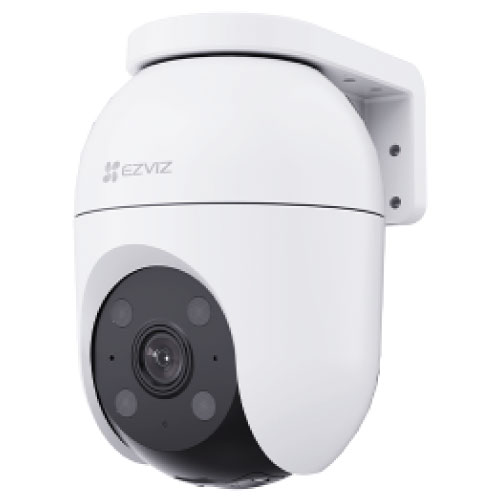

EZVIZ CS-C8C Pro 5MP 3K Pan & Tilt Wi-Fi IP Camera
- Model: CS-C8C Pro
- Sensor: 5MP, 1/3″ Progressive Scan CMOS
- Lens: 4mm@ F1.6
- Interface: 1x RJ45
- Features: AI-Powered Human / Vehicle Shape Detection, WeatherProof
Product Description
| Camera | ||
|---|---|---|
| Image Sensor | 1/3″ Progressive Scan CMOS | |
| Shutter Speed | Self-adaptive shutter | |
| Lens | 4 mm @ F1.6, viewing angle: 41° (vertical), 76° (horizontal), 90° (diagonal) | |
| PT Angle | Pan: 350°, Tilt: 90° | |
| Minimum Illumination | 0.5 Lux @(F1.6, AGC ON), 0 Lux with IR (*data is obtained from EZVIZ laboratories) | |
| Lens Mount | M12 | |
| Day & Night | IR-cut filter with auto switch | |
| DNR | 3D DNR | |
| WDR | Digital WDR | |
| Black & White Night | 30m / 98ft | |
| Video & Audio | ||
| Max Resolution | 3K (2880 × 1620) | |
| Frame Rate | Self-Adaptive during network transmission | |
| Video Compression | H.265 / H.264 | |
| H.265 Type | Main Profile | |
| Video Bit Rate | Ultra-HD; Hi-Def; Standard. Adaptive bit rate. | |
| Audio Bit Rate | Self-Adaptive | |
| Network | ||
| Wi-Fi Standard | IEEE802.11a, IEEE802.11b, 802.11g, 802.11n, 802.11ac | |
| Frequency Range | 2.4 GHz ~ 2.4835 GHz, 5.15 GHz ~ 5.25 GHz, 5.25 GHz ~ 5.35 GHz, 5.47 GHz ~ 5.725 GHz | |
| Channel Bandwidth | Supports 20MHz (2.4GHz) / Supports 80MHz (5GHz) | |
| Security | WPA / WPA2 / WPA3, WPA-PSK / WPA2-PSK, WPA2-PSK / WPA3-PSK | |
| Transmission Rate | 11b: 11Mbps, 11g :54Mbps, 11n :150Mbps, 11ac： 433Mbps, 11ax：600Mbps | |
| Wi-Fi Pairing | AP paring | |
| Protocol | EZVIZ Cloud Proprietary Protocol | |
| Interface Protocol | EZVIZ Cloud Proprietary Protocol | |
| Wired Network | RJ45 × 1 (10 M / 100 M Adaptive Ethernet Port) | |
| Functions | ||
| Smart Alarm | AI-Powered Human / Vehicle Shape Detection | |
| Auto Tracking | Supports | |
| Customized Alert Area | Supports | |
| Two-way Talk | Supports | |
| Preset Locations | Supports | |
| General Function | Anti-Flicker, Dual-Stream, Heart Beat, Password Protection, Watermark | |
| Storage | ||
| Local Storage | Supports microSD card (max. 512 GB) | |
| Cloud Storage | Supports EZVIZ CloudPlay storage (subscription required) | |
| General | ||
| Operating Conditions | -30°C to 50°C ( -22 °F to 122 °F ) Humidity 95% or less (non-condensing) | |
| IP Grade | Weatherproof Design | |
| Power Supply | DC 12V/1A | |
| Power Consumption | Max. 12 W | |

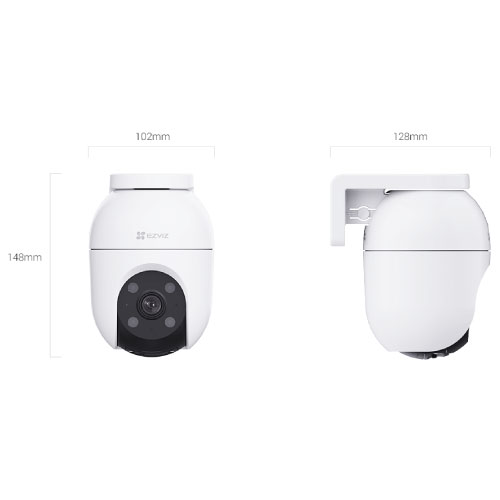

| Dimensions | 102 × 128 × 148 mm (4.02 × 5.04 × 5.83 inch) | |
| Packaging Dimensions | 150 × 150 × 194 mm (5.91 × 5.91 × 7.64 inch) | |
| Weight | Net weight: 400 g (14.11 oz) With package: 896 g (31.61 oz) | |
| In the box | ||
| In the box | – C8c 3K Camera | |
| – Mounting Bracket | ||
| – Drill Template | ||
| – Waterproof Kit | ||
| – Screw Kit | ||
| – Power Adapter | ||
| – Regulatory Information × 2 | ||
| – Quick Start Guide | ||
| Certifications | ||
| Certifications | CE / WEEE / RoHS / REACH / UL | |
