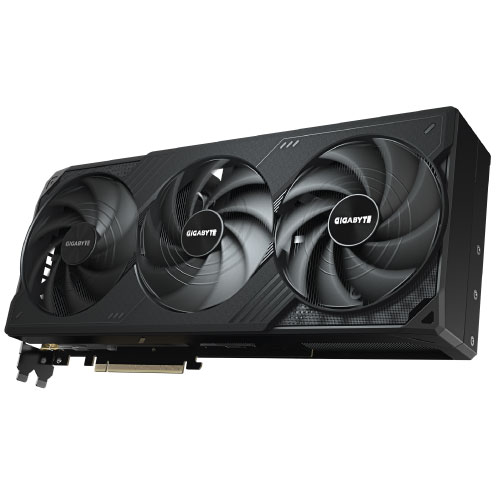

GIGABYTE GeForce RTX 5090 WINDFORCE OC 32GB GDDR7 Graphics Card
- MPN: GV-N5090WF3OC-32GD
- Model: GeForce RTX 5090 WINDFORCE OC 32G
- Video Memory: 32GB GDDR7, PCI Express 5.0
- Core Clock: 2467 MHz (Reference card: 2407MHz)
- CUDA Cores: 21760, Memory Clock: 28 Gbps
- Display Outputs: 3 x DisplayPort 2.1b, 1 x HDMI 2.1b
Product Description
| Video Memory Specifications | ||
| Type | GDDR7 | |
| Size | 32GB | |
| Resolution | 7680×4320 | |
| Core Clock | 2467 MHz (Reference card : 2407MHz) | |
| Memory Clock | 28 Gbps | |
| BUS Type | 512 bit | |
| Memory Interface | PCI-E 5.0 | |
| CUDA Cores | 21760 | |
| Others | Powered by the NVIDIA Blackwell architecture and DLSS 4 WINDFORCE cooling system Hawk fan Server-grade Thermal conductive gel Dual BIOS (Performance / Silent) Reinforced structure Versatile VGA holder Fifth-Gen Tensor Cores Max AI performance with FP4 and DLSS 4 New Streaming Multiprocessors Optimized for neural shaders Fourth-Gen Ray Tracing Cores Built for Mega Geometry |
|
| Interface | ||
| Display Port | DisplayPort 2.1b x3 | |
| HDMI | HDMI 2.1b x1 | |
| Power Specifications | ||
| Connectors | 16 Pin*1 | |
| Recommended PSU | 1000W | |
| Display Option | ||
| Multi Display | 4 | |
| Application Programming Interfaces | ||
| DirectX | DirectX 12 API | |
| OpenGL | 4.6 | |
| Physical Specifications | ||
| Dimensions | L=342 W=150 H=65 mm | |
| Others | PCB Form: ATX | |
| Warranty | ||
| Manufacturing Warranty | 3 Years | |
