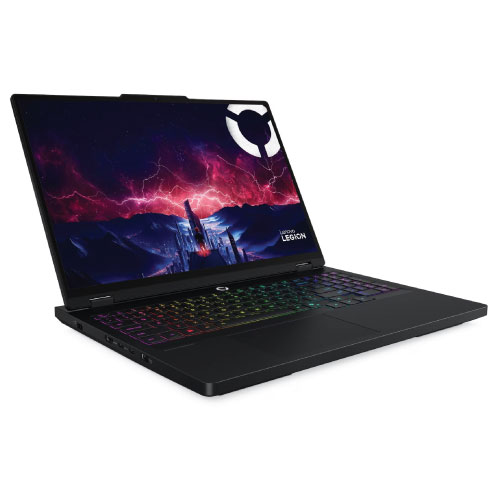

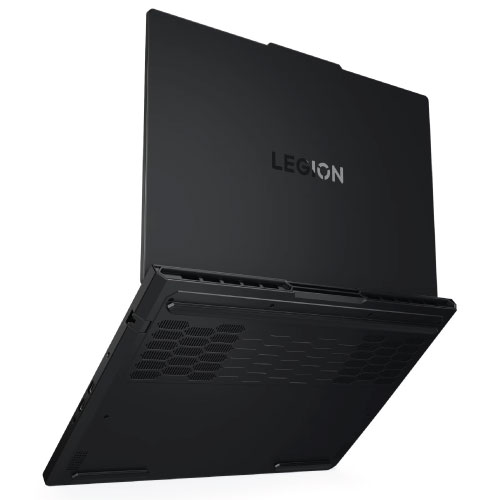

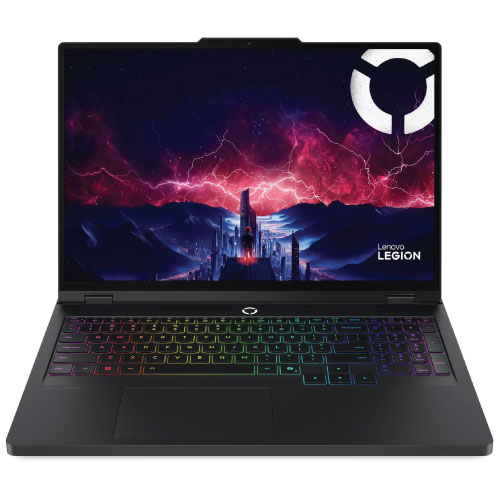

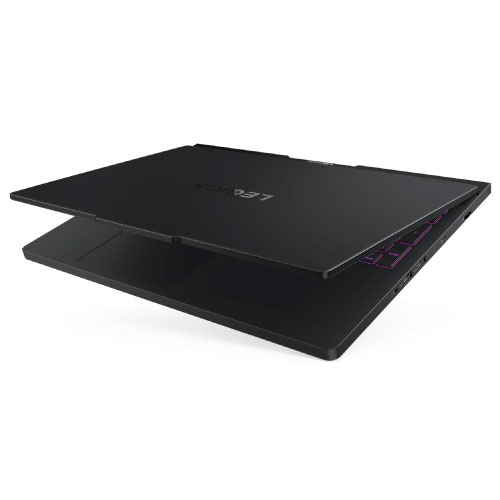

Lenovo Legion Pro 5 16ADR10 Ryzen 7 8745HX RTX 5060 8GB Graphics 16 Inch WQXGA OLED Gaming Laptop
- MPN: 83LT0030LK
- Model: Legion Pro 5 16ADR10
- Processor: AMD Ryzen 7 8745HX (8C / 16T, 3.6 / 5.1GHz, 8MB L2 / 32MB L3)
- RAM: 32GB DDR5-5200, Storage: 1TB M.2 2242 PCIe 4.0×4 NVMe SSD
- Graphics: GeForce RTX 5060 8GB GDDR7, Boost Clock 2497MHz
- Features: RGB Backlit Keyboard, E-shutter, Wi-Fi 7, G-SYNC, Free-Sync Premium
Product Description
| Product | Legion Pro 5 16ADR10 |
| Model | 83LT0030LK |
| PERFORMANCE | |
| Processor | AMD Ryzen™ 7 8745HX (8C / 16T, 3.6 / 5.1GHz, 8MB L2 / 32MB L3) |
| AI PC Category | AI-Powered Gaming PC |
| NPU | None |
| Graphics | NVIDIA® GeForce RTX™ 5060 8GB GDDR7, Boost Clock 2497MHz, TGP 115W, 572 AI TOPS |
| Chipset | AMD SoC Platform |
| Memory | 2x 16GB SODIMM DDR5-5200 |
| Memory Slots | Two DDR5 SODIMM slots, dual-channel capable |
| Max Memory | Up to 32GB DDR5-5200 offering |
| Storage | 1TB SSD M.2 2242 PCIe® 4.0×4 NVMe® |
| Storage Slot | Two M.2 2280 PCIe® 4.0 x4 slots |
| Max Storage Support | Up to two drives, 2x M.2 SSD • M.2 2242 SSD up to 1TB each |
| Optical | None |
| Card Reader | None |
| Audio Chip | High Definition (HD) Audio, Realtek® ALC3306 codec |
| Speakers | Stereo speakers, 2W x2, audio by HARMAN, optimized with Nahimic Audio |
| Microphone | 2x, Array |
| Camera | 5.0MP with E-shutter |
| Battery | 80Wh |
| Power Adapter | 245W Slim Tip (3-pin) |
| Special Features | AI Chip: LA3 |
| DESIGN | |
| Display | 16″ WQXGA (2560×1600) OLED 500nits Glossy, 100% DCI-P3, 165Hz, DisplayHDR™ True Black 1000, Dolby Vision®, G-SYNC®, Free-Sync Premium, Low Blue Light, High Gaming Performance |
| Touchscreen | None |
| Screen-to-Body Ratio | 91.7% AAR (active area ratio) |
| Color Calibration | Factory Color Calibration |
| Pen | Pen Not Supported |
| Keyboard | 24-Zone RGB Backlit, English (EU) |
| Touchpad | Buttonless Mylar® surface multi-touch touchpad, supports Precision TouchPad (PTP), 75 x 120 mm (2.95 x 4.72 inches) |
| Dimensions (WxDxH) | 364.38 x 268.06 x 21.69-25.95 mm (14.35 x 10.55 x 0.85-1.02 inches) |
| Weight | Around 2.3 kg (5.07 lbs) |
| Case Color | Eclipse Black |
| Case Material | Aluminium (Top), PC-ABS (Bottom) |
| Surface Treatment | Anodizing Sandblasting |
| SOFTWARE | |
| Operating System | Windows® 11 Home Single Language, English |
| Bundled Software | Office Trial |
| CONNECTIVITY | |
| WLAN + Bluetooth | Wi-Fi® 7, 802.11be 2×2 + BT5.4 |
| WWAN | WWAN Not Supported |
| Ethernet | 100/1000M (RJ-45) |
| Standard Ports | 2x USB-A (USB 5Gbps / USB 3.2 Gen 1), 1x USB-A (USB 10Gbps / USB 3.2 Gen 2), Always On, 1x USB-C® (USB 10Gbps / USB 3.2 Gen 2), with DisplayPort™ 2.1, 1x USB-C® (USB 10Gbps / USB 3.2 Gen 2), with USB PD 65-100W and DisplayPort™ 2.1, 1x HDMI® 2.1, up to 8K/60Hz, 1x Headphone / microphone combo jack (3.5mm), 1x Ethernet (RJ-45), 1x Slim tip Power connector |
| SECURITY & PRIVACY | |
| Security Chip | Firmware TPM 2.0 Enabled |
| Fingerprint Reader | None |
| Other Security | E-shutter |
| SERVICE | |
| Base Warranty | 2 years Standard Warranty |
| CERTIFICATIONS | |
| Green Certifications | ErP Lot 3, RoHS compliant |
| Other Certifications | TÜV Rheinland® Flicker Free, TÜV Rheinland® High Gaming Performance, TÜV Rheinland® Low Blue Light (Hardware Solution) |
Lenovo Legion Pro 5 16ADR10 – High-Performance Gaming Laptop with RTX™ 50 Series Graphics
The Lenovo Legion Pro 5 16ADR10 is a powerful gaming laptop built for enthusiasts, competitive gamers, and creative professionals who demand exceptional performance and premium visuals. Powered by the AMD Ryzen™ 7 8745HX processor with 8 cores, 16 threads, and boost speeds up to 5.1GHz, this laptop delivers outstanding performance for gaming, streaming, content creation, and intensive multitasking workloads.
For graphics performance, the laptop is equipped with the NVIDIA® GeForce RTX™ 5060 GPU with 8GB GDDR7 memory and 115W TGP, providing smooth frame rates and advanced graphics capabilities for modern AAA games. With AI acceleration up to 572 AI TOPS, the RTX 50 series GPU enables next-generation AI-powered gaming technologies, enhanced graphics rendering, and improved productivity for AI-supported applications.
The 16-inch WQXGA (2560 × 1600) OLED display delivers stunning visual quality with 165Hz refresh rate, 500 nits brightness, and 100% DCI-P3 color accuracy. With support for Dolby Vision®, DisplayHDR™ True Black 1000, NVIDIA® G-SYNC®, and AMD FreeSync™ Premium, gamers can enjoy ultra-smooth gameplay, deep contrast, and vibrant colors. The display also features factory color calibration for accurate visuals in creative work.
The laptop comes with 32GB DDR5-5200 memory (2×16GB) and a 1TB PCIe® 4.0 NVMe SSD, ensuring lightning-fast performance, quick game loading, and seamless multitasking. With two M.2 SSD slots, users can expand storage easily for larger game libraries, software, and files.
Audio performance is enhanced with HARMAN-tuned stereo speakers optimized with Nahimic Audio, delivering immersive sound for gaming and entertainment. The laptop also includes a 5MP webcam with E-shutter, providing clear video quality while protecting user privacy.
Connectivity options include Wi-Fi 7, Bluetooth 5.4, Gigabit Ethernet, multiple USB-A ports, USB-C with DisplayPort™ 2.1 and Power Delivery, HDMI® 2.1 supporting up to 8K output, and a 3.5mm audio combo jack, making it easy to connect high-performance peripherals and external displays.
Powered by a large 80Wh battery and a 245W Slim Tip power adapter, the Lenovo Legion Pro 5 is designed for long gaming sessions and demanding workloads. The laptop features a premium Eclipse Black chassis, a 24-zone RGB backlit keyboard, and a durable design for both gaming and professional use.
With Windows® 11 Home pre-installed, TÜV Rheinland Low Blue Light and Flicker-Free certifications, and a 2-year standard warranty, the Lenovo Legion Pro 5 16ADR10 delivers powerful performance, advanced graphics, and immersive gaming experiences in a modern, high-performance laptop.
