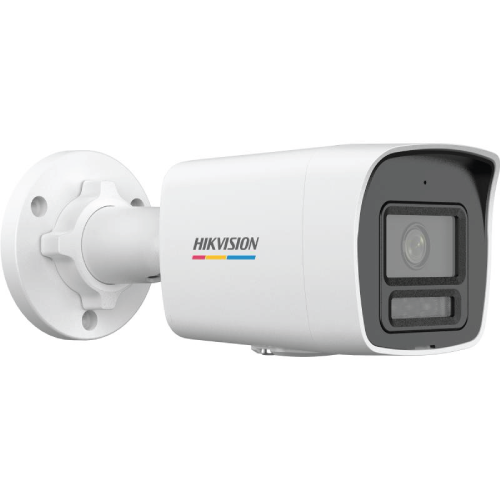

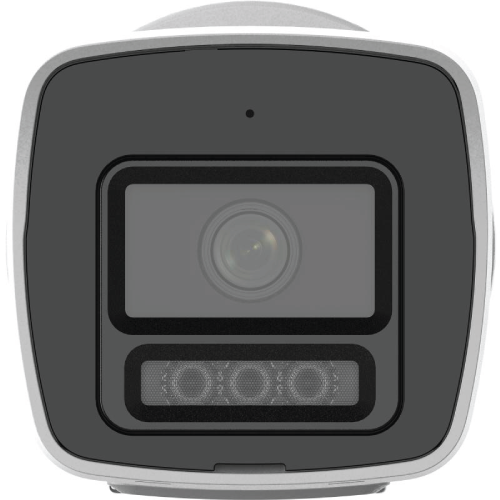

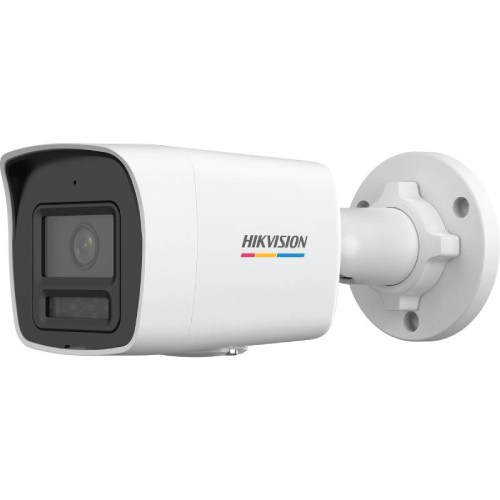

Hikvision DS-2CD1027G3-LIU 2 MP ColorVu 3.0 Fixed Bullet Network Camera

Product Description

Camera

• Image Sensor1/2.8″ Progressive Scan CMOS
• Max. Resolution1920 × 1080
• Min. IlluminationColor: 0.0005 Lux @ (F1.0, AGC ON),0 Lux with light
• Shutter Time1 s to 1/100,000 s
• Day & NightIR cut filter
• Angle AdjustmentPan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360°

Lens

• Lens TypeFixed focal lens, 2.8 and 4 mm optional
• Focal Length & FOV

  2.8 mm, horizontal FOV 106°, vertical FOV 56°, diagonal FOV 129°

  4 mm, horizontal FOV 88°, vertical FOV 47°, diagonal FOV 103°

• Lens MountM12
• Iris TypeFixed
• ApertureF1.0
• Depth of Field

  2.8 mm: 1.2 m to ∞

  4 mm: 1.3 m to ∞

DORI

• DORI

  2.8 mm, D: 44 m, O: 17 m, R: 8 m, I: 4 m

  4 mm, D: 53 m, O: 21 m, R: 10 m, I: 5 m

Illuminator

• Supplement Light TypeIR,White Light
• Supplement Light RangeUp to 30 m
• Smart Supplement LightYes
• IR Wavelength850 nm

Video

• Main Stream

  50 Hz: 25 fps (1920 × 1080, 1280 × 720)

  60 Hz: 30 fps (1920 × 1080, 1280 × 720)

• Sub-Stream

  50 Hz: 25 fps (640 × 480, 640 × 360)

  60 Hz: 30 fps (640 × 480, 640 × 360)

• Video Compression Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG
• Video Bit Rate32 Kbps to 8 Mbps
• H.264 TypeBaseline Profile,Main Profile,High Profile
• H.265 TypeMain Profile
• Bit Rate ControlCBR,VBR
• Scalable Video Coding (SVC)H.264 and H.265 encoding
• Region of Interest (ROI)1 fixed region for main stream and sub-stream

Audio

• Audio TypeMono sound
• Audio Compression G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC/MP3
• Audio Bit Rate64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)/8 to 160 Kbps(MP3)
• Audio Sampling Rate8 kHz/16 kHz
• Environment Noise FilteringYes

Network

• ProtocolsTCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, RTCP, NTP, IPv4, IPv6, IGMP, UDP, QoS, FTP, SMTP
• Simultaneous Live ViewUp to 6 channels
• APIONVIF (Profile S, Profile G, Profile T),ISAPI,SDK
• User/Host

  Up to 32 users

  3 user levels: administrator, operator, and user

• SecurityPassword protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)
• ClientiVMS-4200;Hik-Connect
• Web Browser

  Plug-in required live view: Chrome 80+, Firefox 80+, Edge 89+, Safari 13+

  Plug-in free live view: Chrome 80+, Firefox 80+, Edge 89+


• Image SettingsRotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
• Day/Night SwitchDay,Night,Auto,Schedule
• Wide Dynamic Range (WDR)120 dB
• SNR≥ 52 dB
• Image EnhancementBLC,HLC,3D DNR
• Privacy Mask4 programmable rectangular privacy masks

Transducer

• Transducer TypeNA
• Detection AngleNA
• Detection RangeNA

Interface

• Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
• On-Board StorageNA
• Built-in MicrophoneYes,1 built-in microphone
• Built-in SpeakerNA
• AudioNA
• Alarm NA
• Reset KeyNA

Event

• Basic Event Motion detection (support alarm triggering by specified target types (person and vehicle)), video tampering alarm, exception
• LinkageUpload to memory card/FTP,notify surveillance center,send email,trigger capture

General

• Power

  12 VDC ± 25%, 0.55 A, max. 6.6 W,Ø5.5 mm coaxial power plug,reverse polarity protection,

  PoE: IEEE 802.3af, Class 3, max. 8 W

• MaterialFront cover: metal, body: plastic, bracket: plastic
• Dimension69.1 mm × 66.9 mm × 172.9 mm (2.7″ × 2.6″ × 6.8″)
• Package Dimension216 mm × 121 mm × 118 mm (8.5″ × 4.8″ × 4.7″)
• Weight

  -LIU: Approx. 330 g (0.73 lb.)

  -LIUF: Approx. 335 g (0.74 lb.)

  -LIU(F)/SL: Approx. 450 g (0.99 lb.)

  -LIU(F)/SRB: Approx. 450 g (0.99 lb.)

• With Package Weight

  -LIU: Approx. 445 g (0.98 lb.)

  -LIUF: Approx. 450 g (0.99 lb.)

  -LIU(F)/SL: Approx. 480 g (1.06 lb.)

  -LIU(F)/SRB: Approx. 480 g (1.06 lb.)

• Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Startup and Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• LanguageEnglish, Russian, Ukrainian, Arabic, Spanish, French, Portuguese, Turkish, Polish, German
• General FunctionHeartbeat,mirror,flash log,password reset via email,password protection,anti-banding
• Flashing LightNA

Approval

• EMCCE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021
• Safety

  CB: IEC 62368-1: 2014+A11

• Environment

  CE-RoHS: 2011/65/EU,

  WEEE: 2012/19/EU,

  Reach: Regulation (EC) No 1907/2006

• ProtectionIP67: IEC 60529-2013
