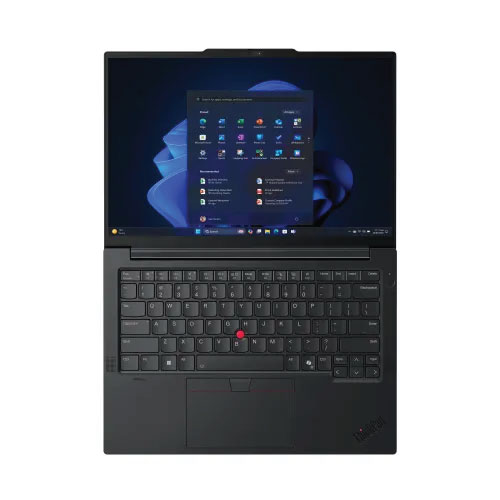

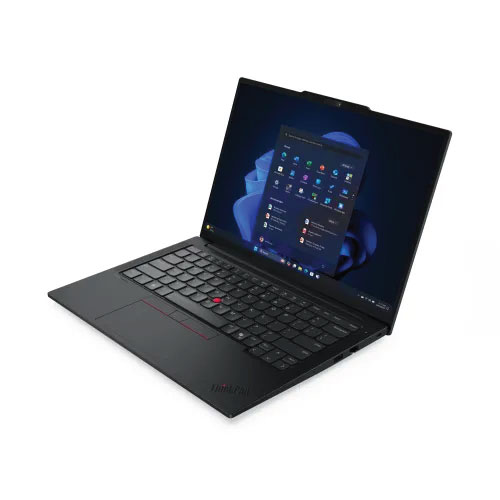

Lenovo ThinkPad E14 Gen 7 Intel Core Ultra 5 225U 14 Inch WUXGA Laptop
- MPN: 21SXS0N300
- Model: ThinkPad E14 Gen 7
- Processor: Intel Core Ultra 5 225U (12MB Cache, Up to 4.8GHz)
- RAM: 8GB DDR5 5600MHz, Storage: 512GB M.2 PCIe 4.0×4 NVMe Opal 2.0
- Display: 14″ WUXGA (1920×1200) IPS 300nits Anti-glare, 45% NTSC, 60Hz
- Features: Backlit Keyboard, Fingerprint, Privacy Shutter, Wi-Fi 6E, Military Grade
Product Description
| Processor | ||
| Processor Brand | Intel | |
| Processor Model | Core Ultra 5 225U | |
| Processor Frequency | Max Turbo up to 4.8GHz | |
| Processor Core | 12C (2P + 8E + 2LPE) | |
| Processor Thread | 14T | |
| CPU Cache | 12MB Intel Smart Cache | |
| NPU | Integrated Intel AI Boost, up to 12 TOPS | |
| Chipset | ||
| Chipset Model | Intel SoC Platform | |
| Display | ||
| Display Size | 14 Inch | |
| Display Type | IPS | |
| Display Resolution | WUXGA (1920 x 1200) | |
| Touch Screen | N/A | |
| Refresh Rate | 60Hz | |
| Display Features | 300nits Anti-glare, 45% NTSC 90% Screen-to-Body Ratio |
|
| Memory | ||
| RAM | 8GB | |
| RAM Type | DDR5 | |
| Removable | Yes | |
| Bus Speed | 5600MHz | |
| Total RAM Slot | two DDR5 SODIMM slots, dual-channel capable | |
| Max RAM Capacity | up to 64GB DDR5-5600 | |
| Storage | ||
| Storage Type | M.2 2242 PCIe 4.0×4 NVMe Opal 2.0 SSD | |
| Storage Capacity | 512GB | |
| Extra M.2 Slot | two M.2 slots One M.2 2242 PCIe® 4.0 x4 slot One M.2 2280 PCIe® 4.0 x4 slot |
|
| Supported SSD Type | M.2 2242 PCIe 4.0 x4 slot | |
| Storage Upgrade | Up to 1TB | |
| Graphics | ||
| Graphics Model | Intel Graphics | |
| Graphics Memory | Shared | |
| Graphics Type | Integrated | |
| Keyboard & TouchPad | ||
| Keyboard Type | Backlit Keyboard | |
| Keyboard Features | English | |
| TouchPad | Yes | |
| Camera & Audio | ||
| WebCam | 720p HD webcam | |
| Speaker | Stereo speakers, 2W x2 | |
| Microphone | 2x, Array | |
| Audio Features | Dolby Atmos, audio by HARMAN Audio Chip: High Definition (HD) Audio, Senary SN6147 codec |
|
| Ports & Slots | ||
| Optical Drive | N/A | |
| Card Reader | N/A | |
| HDMI Port | 1x HDMI 2.1, up to 4K/60Hz | |
| USB 3 Port | 1x USB-A (USB 5Gbps / USB 3.2 Gen 1) 1x USB-A (USB 10Gbps / USB 3.2 Gen 2), Always On |
|
| USB Type-C / Thunderbolt Port | 1x USB-C (Thunderbolt 4 / USB4 40Gbps), with USB PD 45-65W and DisplayPort 2.1 | |
| Headphone & Microphone Port | 1x Headphone / microphone combo jack (3.5mm) | |
| Network & Connectivity | ||
| LAN | 1x Ethernet 100/1000M (RJ-45) | |
| WiFi | Intel Wi-Fi 6E AX211, 802.11ax 2×2 | |
| Bluetooth | Bluetooth 5.3 | |
| Security | ||
| Fingerprint Sensor | Touch Style, Match-on-Chip, Integrated in Power Button | |
| Security Locker Slot | Kensington Nano Security Slot™, 2.5 x 6 mm | |
| Camera Privacy Shutter | Yes | |
| Security Chip | Discrete TPM 2.0 Enabled | |
| Software | ||
| Operating System | FreeDOS | |
| Power | ||
| Battery Capacity | 48Wh | |
| Adapter Type | 65W USB-C (3-pin) | |
| Physical Specification | ||
| Color | Black | |
| Dimensions | 313 x 220.3 x 10.1/15.25 (front/rear), 20.5 (maximum) mm; 12.32 x 8.67 x 0.40/0.60 (front/rear), 0.81 (maximum) inches |
|
| Weight | Starting at 1.34 kg (2.95 lbs) | |
| Body Material | Aluminium (Top), PC-ABS (Bottom) | |
| Warranty | ||
| Warranty Details | 3 years Warranty (Battery 1 year). | |
