| WIRELESS |
| Standards |
WiFi 5 |
| IEEE802.11ac/n 5GHz |
| IEEE802.11b/g/n 2.4GHz |
| WiFi Speeds |
AC1200 |
| 5GHz: 867 Mbps (802.11ac) |
| 2.4GHz: 300 Mbps (802.11n) |
| WiFi Range |
3 Bedroom Houses |

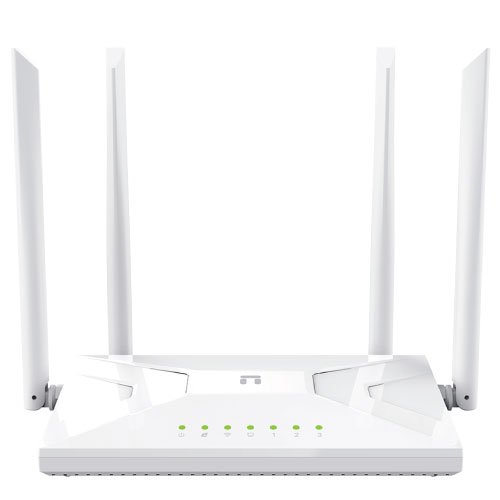

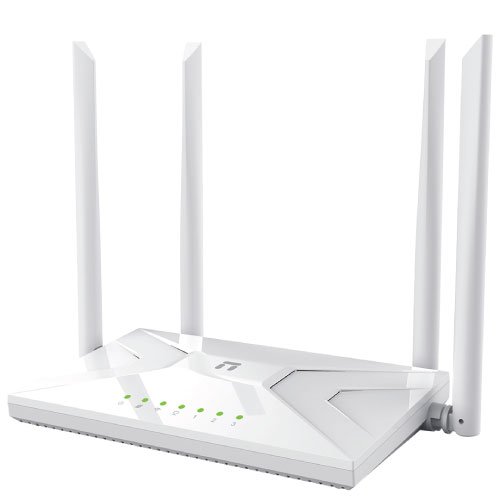

| 4x Fixed High-Performance Antennas |
| Multiple antennas form a signal-boosting array to cover more directions and large areas |
| Beamforming Concentrates wireless signal strength towards clients to expand WiFi range |
| High-Power FEM Improves transmission power to strengthen signal coverage |
| WiFi Capacity |
Dual-Band |
| Allocate devices to different bands for optimal performance |
| OFDM |
| Simultaneously communicates with multiple Wi-Fi 5/4 clients |
| Airtime Fairness |
| Improves network efficiency by limiting excessive occupation |
| 4 Streams Connect your devices to more bandwidth |
| Working Modes |
AP Router Mode, AP Mode, WISP Mode, Client Mode, Repeater Mode |
| HARDWARE |
| Processor |
1GHz CPU |
| Main Chipset |
RTL8197FH-VG5+RTL8812FR |
| DDR/FLASH |
128MB/8MB |
| Interface |

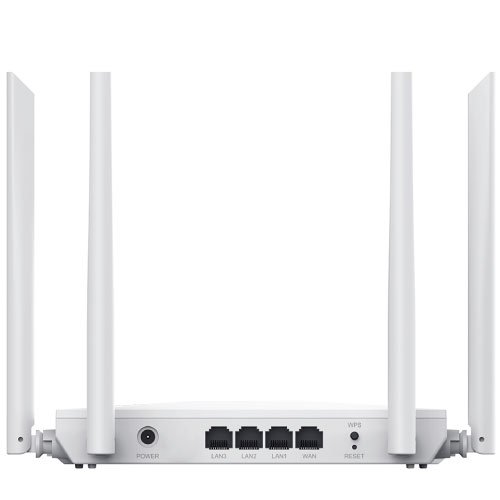

1x Fast WAN Port + 3x Fast LAN Ports |
| Buttons |
WPS,RESET |
| Power |
12V1A |
| SOFTWARE |
| WiFi Encryption |
WEP, WPA-PSK, WPA2-PSK, WPA/WPA2-PSK |
| Network Security |
Access Control, IP & MAC Binding |
| Guest Network |
4*5GHz Guest Network /4*2.4GHz Guest Network |
| Protocols |
IPv4, IPv6 |
| WAN Types |
DHCP, Static IP, PPPoE, L2TP, PPTP |
| Quality of Service |
QoS by Device |
| Forwarding |
Virtual Servers, DMZ, UPnP |
| IPTV |
Bridge, Tag VLAN |
| DHCP |
Address Reservation, DHCP Client List, DHCP Server |
| Access Control |
IP Filtering, MAC Filtering, Domain Filtering, IPv6 Filtering |
| Dynamic DNS |
DynDns, no-ip |
| IGMP |
IGMP Proxy, IGMP Snooping |
| VPN |
PPTP Pass-through, L2TP Pass-through, IPSEC Pass-through, SIP Pass-through |
|
Bandwidth Control, Multiple SSID, FOTA, TR069, WOL, ARP List, Static Routing, Port Setting, Remote Access, Backup & Restore |
| PHYSICAL |
| Dimensions(W×D×H) |
228*134*188mm |
| Package Contents |
1* NC21 |
| 1* Power Adapter |
| 1* RJ45 Ethernet Cable |
| 1* Quick Installation Guide |
|
|
|
|
