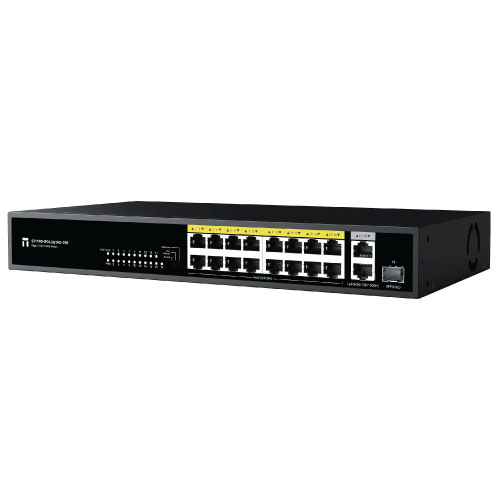

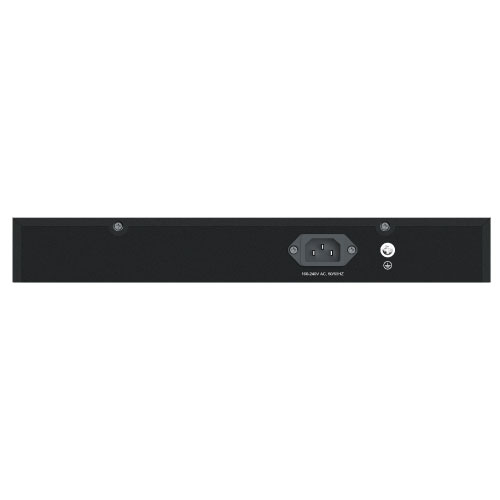

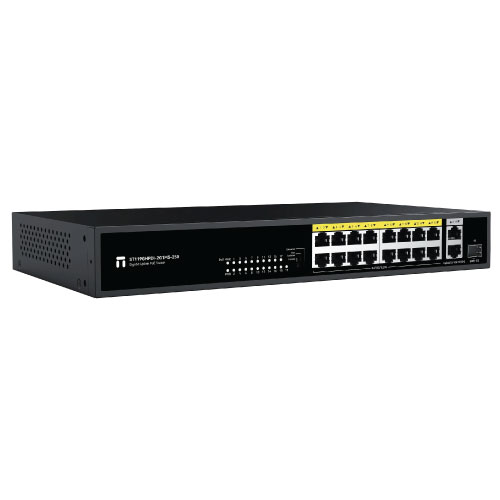

Netis ST119GHPDI-2G1MS-250 16FE PoE+2GE Uplink + 2.5G SFP PoE Switch
- Model: Netis ST119GHPDI-2G1MS-250
- 16* 10/100M PoE ports+2* 10/100/1000M uplink ports+1* 2.5G SFP port.
- Internal 250W power supply with up to 30W PoE output per port.
- Durable steel housing for better heat dissipation.
- Support IEEE 802.3af/at standards, compatible with powered devices (PD) that meet IEEE 802.3af/at.
- All ports support auto MDI/MDI-X function.
- Equipped with a convenient DIP switch that can be easily switched between Normal mode, Port Isolation mode, and Extension mode.
Product Description
| Model | ST119GHPDI-2G1MS-250 |
| Switch category | Unmanaged high-power PoE switch |
| Total ports | 19 network interfaces |
| PoE ports | 16 × 10/100Mbps RJ45 ports |
| Copper uplink ports | 2 × 10/100/1000Mbps RJ45 ports |
| Fibre uplink | 1 × 2.5Gbps SFP/SFP+ slot |
| DIP switch modes | Normal, Port Isolation and Extension |
| Switching architecture | Store-and-forward |
| Switching capacity | 12.2Gbps |
| MAC address table | 8,000 entries |
| Auto MDI/MDIX | Supported on all RJ45 ports |
| MAC learning | Automatic learning and aging |
| Enclosure | Durable steel housing |
| Dimensions | 330 × 180.9 × 45mm |
| Dimensions in inches | 12.99 × 7.12 × 1.77 inches |
| Installation type | Desktop or rack/cabinet installation, depending on included mounting hardware |
