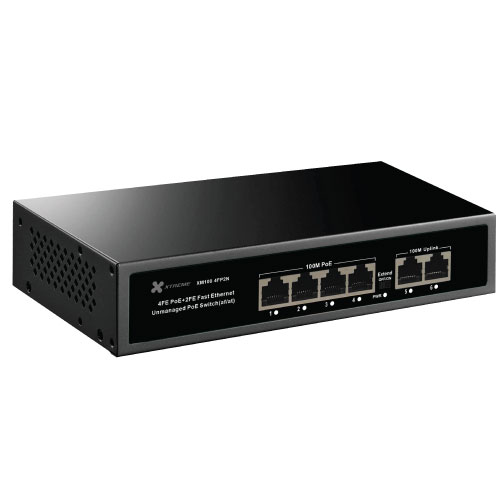

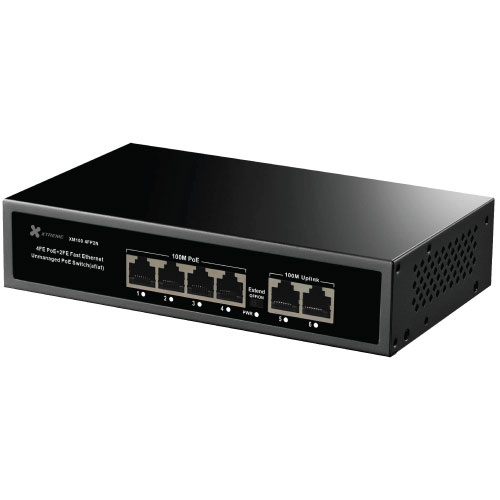

XTREME X100-4FP2N UNMANAGED POE Switch
- 4*10/100Mbps PoE+ ports, 2*10/100Mbps RJ45 Uplink
- Support IEEE802.3af/at
- Support restrain network storm, 1-4 port support VLAN mode
- Support Max Transmission distance up to 250m
- All RJ45 port supported by MDI/MDIX auto flip and auto-negotiation
- Built-in power supply
- Maximum power of single PoE port: 30 W
- Total power: 65W
- Adopts store-and-forward architecture
- Fanless, natural cooling, small,compact and quiet design, suitable for desktop or wall mounting
- Support lightning protection 4kV
Product Description
| Item | Description | ||
| Power | Power Adapter Voltage | AC 110V-240V | |
| Consumption | 65W | ||
| Network Connector | Network Port | PoE Ethernet Port | 1～4 Port: 10/100Mbps |
| RJ45 Ethernet port | Uplink Port: 10/100Mbps | ||
| Transmission Distance | 1～4 Port: 100Mbps:0~100m;
10Mbps: 0~250m; |
||
| Uplink Port: 0 ~ 100m | |||
| Transmission Medium | Cat5/5e/6 standard network cable | ||
| Network Switch | Network Standard | IEEE802.3/802.3u,
IEEE802.3x,IEEE802.ab |
|
| Switching Capacity | 1.2Gbps | ||
| Packet Buffer Memory | 1Mbits | ||
| Throughput | 0.8928Mpps | ||
| MAC Table | 1K | ||
| Packet Forwarding rate | 10Mbps:14880pps/port 100Mbps: 148800pps/port | ||
| Power Over Ethernet | PoE Standard | IEEE 802.3af/at | |
| PoE Power Supply | 12+ ,36 – , 4 core power supply | ||
| PoE Power | af=15.4W, at=30W for each port | ||
| RJ45 port | Port Function | Power priority mechanism, fast and forward,
MAC automatic learning and aging IEEE802.3X Full-duplex and mode and backpressure for Half-duplex mode |
|
| LED Indicator | LED Indicator | PoE Status Indicator;
Power indicator; Extend |
|
| Environmental | Working temperature | 0℃~+55℃ | |
| Relative Humidity | 20%~95% | ||
| Storage temperature | -20℃~+70℃ | ||
| Mechanical | Dimension (L×W×H) | 190mm*125mm*38mm | |
| Color | Black | ||
| Installation | Wall mounting/Desktop | ||
| Weight | 0.70 kg | ||
| Stability | MTBF | >50,000h | |
