BenQ PD3205U 32 Inch 4K UHD sRGB HDR10 Type-C Designer Monitor
- Model: PD3205U
- Resolution: UHD (3840×2160)
- Display: IPS, 60Hz, 5ms
- Ports: 1xHDMI, 1xUSB Type-C, 3xUSB 3.2
- Features: HDR10, AQCOLOR, Low Blue Light
Product Description
| Model Name | PD3205U 4K UHD DesignVue Designer Monitor |
| Display | |
| Screen Size | 32 inch |
| Panel Type | IPS |
| Product Color | Dark Gray |
| Backlight Technology | LED backlight |
| Resolution (max.) | 3840×2160 |
| Brightness (peak)(HDR) | 350 nits |
| Viewing Angle (L/R) (CR>=10) | 178°/178° |
| HDR | HDR10 |
| Response Times (GtG) | 5 ms |
| Native Contrast | 1200:1 |
| Refresh Rate (Hz) | 60 Hz |
| Color Gamut | 99% Rec.709 | 99% sRGB |
| Color Mode | Animation;CAD/CAM;Darkroom;DICOM;HDR;Low Blue Light;M-Book;Rec.709;sRGB;User |
| Aspect Ratio | 16.9 |
| Display Colors | 1.07 billion colors |
| PPI | 109 |
| Display Screen Coating | Anti-Glare |
| Gamma | 1.8 – 2.6, sRGB |
| HDCP | 2.2 |
| OSD Language | Arabic, Chinese (simplified), Chinese (traditional), Czech, Deutsch, English, French, Hungarian, Italian, Japanese, Korean, Netherlands, Polish, Portuguese, Romanian, Russian, Spanish, Swedish |
| AMA | Yes |
| Audio | |
| Built-in Speaker | 3W x 2 |
| Microphone | N/A |
| Headphone Jack | Yes |
| Power | |
| Voltage Rating | 100 – 240V |
| Power Supply | N/A |
| Power Consumption (normal) | 31.5W |
| Power Consumption (max) | 168 W |
| Power Consumption (sleep mode) | <0.5 W |
| Power Delivery(USB C / Thunderbolt 3) | 90W |
| Dimension and Weight | |
| Tilt (down/up) | -5˚ – 20˚ |
| Swivel (left/right) | 30°/30° |
| Pivot | 90˚ |
| Height Adjustment Stand | 110mm |
| Dimensions (HxWxD) (mm) | 429.97~544.96 x 614 x 220.2 |
| Dimensions (HxWxD) (inch) | 21.8- 27.7 x 24.2 x 18.1 |
| Dimensions (HxWxD) (Landscape) (mm) | 424-534 x 612 x 241 |
| Dimensions (HxWxD) (Landscape) (inch | 17~21.4 x 24.2 x 8.7 |
| Dimensions (HxWxD) (Pivot) (mm) | 666 x 384 x 241 |
| Dimensions (HxWxD) (w/o Base) (inch) | 14.4 x 24.2 x 3.2 |
| Net Weight (kg) | 9.4kg |
| Net Weight (lb) | 20.7 lb |
| GrossWeight (kg) | 13.4 |
| VESA Wall Mount | 100×100 mm |
| Accessories | |
| Other Accessories | Power cord (1.8m), USB 3.2 Gen1 upstream USB-A to C cable (1.8m),USB-C 3.2 Gen1 (1.5m)(90W), DP to DP 1.2 cable(1.8m), QSG, Safety instruction, Regulatory Statement, Calibration report, Clean cloth |

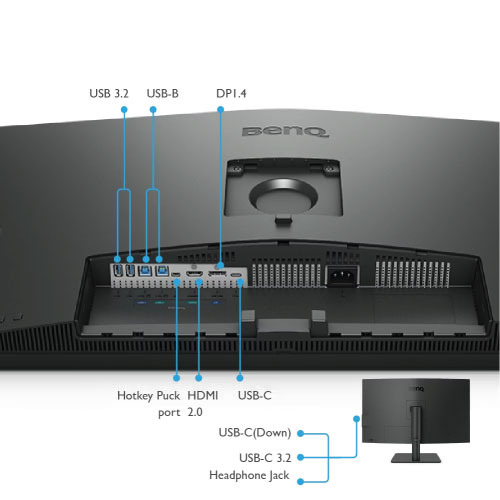

| Connectivity | |
| HDMI (v2.0) | 1 |
| DisplayPort (v1.4) | 1 |
| USB C(PowerDelivery 65W, DisplayPort Alt Mode, Data) | 1 |
| USB C ( Downstream ) | 1 |
| USB Type B ( Upstream ) | 2 |
| USB 3.2 ( Downstream ) | 3 |
| All-in-One Connection | USB-C |
| Eye Care | |
| Low Blue Light | Yes |
| Flicker-free Technology | Yes |
| Brightness Intelligence Gen2 (B.I. Gen2) | Yes |
| Certification | |
| TUV Certificate | Flicker-free, Low Blue Light |
| Eye-CareU | Yes |
| Professional | |
| Video Format Support | Yes |
| Factory Calibration Report | Yes |
| Delta E(avg) | ≤3 |
| CAD/CAM mode | Yes |
| KVM Switch | Yes |
| DualView | Yes |
| Auto Pivot | Yes |
| Uniformity Technology | Yes |
| Hotkey Puck G2 | Yes |
| PIP/PBP | Yes |
| ICCsync | Yes |
| Software | |
| Display Pilot | Yes |
| Display Pilot 2 | Yes |
| Display ColorTalk | Yes |
| Display Quickit | Yes |
