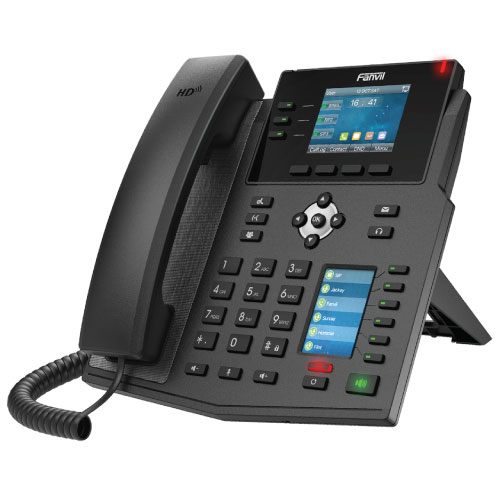

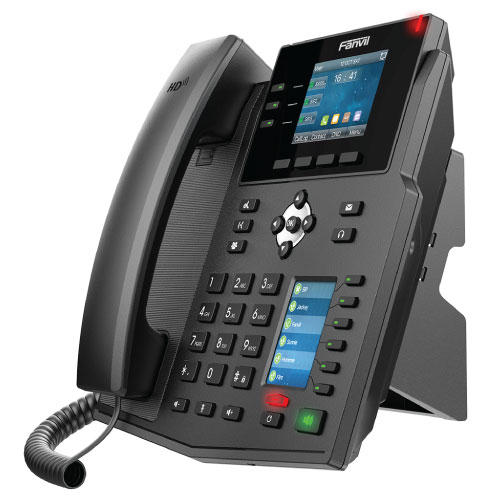

Fanvil X4U Enterprise IP Phone Without Adapter
- Model: X4U
- 2x LCD Color Screen (Main + DSS), 12 SIP Lines
- Support 6-way audio conference
- Support EHS wireless headset, Wi-Fi Dongle, or BT Dongle
- Dual Gigabit ports, integrated PoE
Product Description
| Basic Information | ||
| Keys | 41 keys, including 3 Line keys (with LED indicator light) 4 Soft-keys 6 Function keys (Hold, Call forward, Conference, MWI, Headset, Redial) 4 Navigation keys 1 OK Key 12 Standard phone digit keys 3 Volume control keys (Up/Down/Mute(Microphone)) 6 DSS keys (with LED indicator light) 1 Page-switch (PS) key (with LED indicator light) 1 Hands-free key (with LED indicator light) |
|
| Display | Main LCD: 2.8-inch (320×240) color screen DSS key-mapping LCD: 2.4-inch (240×320) color screen |
|
| Protocols/Standards | SIP2.0 over UDP/TCP/TLS RTP/RTCP/SRTP STUN DHCP IPv6 LLDP CDP PPPoE 802.1x L2TP OpenVPN SNTP FTP/TFTP HTTP/HTTPS TR-069 |
|
| Operating System | Linux | |
| Ports and Connectivity | ||
| USB | USB2.0 port x1: Standard A, connect with USB BT dongle or USB Wi-Fi dongle or flash driver | |
| Ethernet Port | RJ45 port x2: network x1, PC x1 (bridged to network) | |
| PoE | Yes | |
| Wi-Fi | Support Wi-Fi Dongle (Via WF20) | |
| Bluetooth | Support Bluetooth headset (Via BT Dongle BT20) |
|
| Codec support | ||
| Voice Codecs | G.722 and Opus | |
| Telephony Features | ||
| Number of Lines | 12-SIP | |
| Contact Capacity | 1000 | |
| Callers log | 1000 | |
| Redail | Yes | |
| Recording | Yes (Through Server) | |
| Conferencing | 6-way audio conference | |
| HD Voice | Yes | |
| Power | ||
| Power Input | DC5V / 0.6A or PoE | |
| Power Consumption | Power Consumption(Adapter): 0.87W-4.72W Power Consumption(PoE): 1.27~6.80W |
|
| AC Adapter | Input:100-240VAC~50/60Hz Output:5V/0.6A | |
| Physical Specification | ||
| Dimensions | Desktop stand (angles 1: 45degree): 214×188.6×181.1 mm Desktop stand (angles 2: 50degree): 214×180.5×190.1 mm Wall-mounted: 214×119.4×219.1mm | |
| Weight | 11.76kg | |
| Color | Black | |
| Foot Stand | Yes | |
| Wall Mounting | Yes | |
| Warranty | ||
| Warranty | 1 year | |
