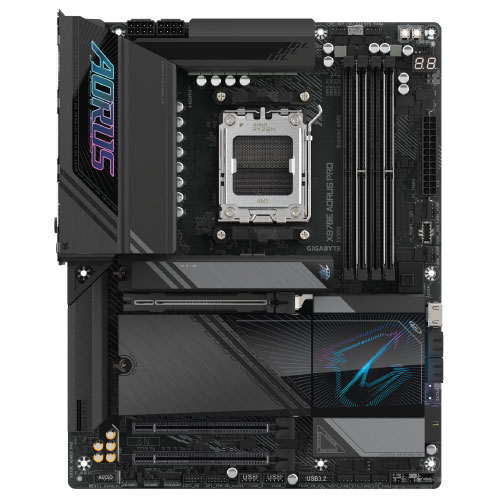

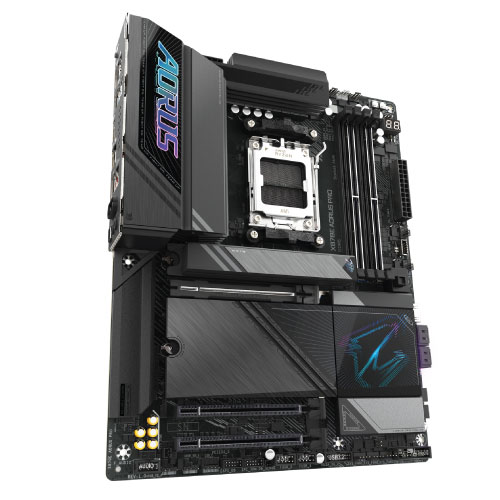

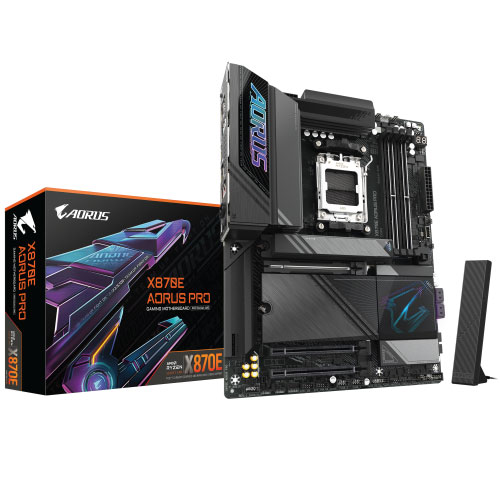

GIGABYTE AMD X870E AORUS PRO Motherboard

  • AMD Socket AM5:Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Processors
  • Digital twin 16+2+2 phases VRM solution
  • Dual Channel DDR5:4*DIMMs with AMD EXPO™Memory Module Support
  • WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation
  • EZ-Latch Plus:PCIe and M.2 slots with Quick Release & Screwless Design
  • EZ-Latch Click:M.2 heatsinks with screwless design
  • Sensor Panel Link:Onboard video port for hassle-free in-chassis panel setup
  • Friendly UI: Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW
Category: Tag: Brand:

৳ 56,000.00

Product Description

  • CPU:
    AMD Socket AM5, support for:
    AMD Ryzen™ 9000 Series Processors/
    AMD Ryzen™ 8000 Series Processors/
    AMD Ryzen™ 7000 Series Processors
  • Chipset: AMD X870E
  • Memory:
    Support for DDR5 8200(OC) / 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules
    4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
    Dual channel memory architecture
    Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
  • Onboard Graphics:
    Integrated Graphics Processor with AMD Radeon™ Graphics support+ASMedia USB4® Controller:
    – 2 x USB4® USB Type-C® ports, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840×2160@240 Hz
    * Support for DisplayPort 1.4 version and HDR.

    Integrated Graphics Processor with AMD Radeon™ Graphics support:
    – 1x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz
    * Support for HDMI 2.1 version, HDCP 2.3, and HDR.
    ** Support for native HDMI 2.1 TMDS compatible ports.

    – 1 x front HDMI port, supporting a maximum resolution of 1920×1080@30 Hz
    * Support for HDMI 1.4 version

    (Graphics specifications may vary depending on CPU support.)

  • Audio:
    Realtek® ALC1220 CODEC
    * The back panel line out jack supports DSD audio.

    High Definition Audio 2/4/5.1/7.1-channel
    * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

    Support for S/PDIF Out

  • LAN: Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
  • Wireless Communication module:
    Qualcomm® Wi-Fi 7 QCNCM865
    – 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands
    – BLUETOOTH 5.4
    – Support for 11be 320MHz wireless standard
    (Actual data rate may vary depending on environment and equipment.)
    * Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10.)
    ** Wi-Fi 7 channels on 6 GHz band availability depends on individual country’s regulations.
    *** Bluetooth version may change with updates. See the Wi-Fi chip vendor’s website for details.

  • Expansion Slots:
    1x PCI Express x16 slot (PCIEX16), integrated in the CPU:
    AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode
    * The M2B_CPU and M2C_CPU connectors share bandwidth with the PCIEX16 slot.

    When theM2B_CPU orM2C_CPU connector is populated, the PCIEX16 slot operates at up to x8 mode.
    AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
    AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
    (The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.)

    Chipset:
    – 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4_1)
    – 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4_2)

  • Storage Interface:
    1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:
    AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs
    AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
    AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs

    2 x M.2 connectors (M2B_CPU, M2C_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs:
    AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs
    * The M2B_CPU and M2C_CPU connectors will become unavailable when using the AMD Ryzen™ 8000 Series-Phoenix 1/Phoenix 2 Processors.

    1 x M.2 connector (M2D_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs
    4 x SATA 6Gb/s connectors
    RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
    * RAID 5 is only available on AMD Ryzen™ 9000 Series Processors.
    * RAID 0, RAID 1, and RAID 10 support for SATA storage devices

  • USB:
    CPU+ASMedia USB4® controller:
    – 2 x USB4® USB Type-C® ports on the back panel
    CPU:
    – 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
    Chipset:
    – 1 x USB Type-C® port with USB 3.2 Gen 2×2 support, available through the internal USB header
    – 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
    – 8 x USB 3.2 Gen 1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
    – 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
  • Internal I/O Connectors:
    1 x 24-pin ATX main power connector
    2 x 8-pin ATX 12V power connectors
    1 x CPU fan header
    1 x CPU fan/water cooling pump header
    4 x system fan headers
    2 x system fan/water cooling pump headers
    3 x addressable RGB Gen2 LED strip headers
    1 x RGB LED strip header
    4 x SATA 6Gb/s connectors
    4 x M.2 Socket 3 connectors
    1 x front panel header
    1 x front panel audio header
    1 x USB Type-C® header, with USB 3.2 Gen 2×2 support
    2 x USB 3.2 Gen 1 headers
    2 x USB 2.0/1.1 headers
    1 x noise detection header
    1 x HDMI port (Note)
    1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI2.0/GC-TPM2.0 SPI V2 module only)
    1 x power button
    1 x reset button
    2 x temperature sensor headers
    1 x reset jumper
    1 x Clear CMOS jumper

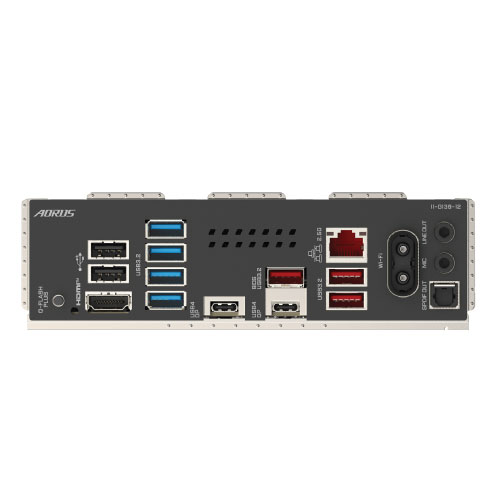

  • Back Panel Connectors:
    1 x Q-Flash Plus button
    2 x USB 2.0/1.1 ports
    1 x HDMI port (Note)
    4 x USB 3.2 Gen 1 ports
    2 x USB4® USB Type-C® port (DisplayPort (Note))
    3 x USB 3.2 Gen 2 Type-A ports (red)
    1 x RJ-45 port
    2 x antenna connectors (2T2R)
    1 x optical S/PDIF Out connector
    2 x audio jacks
  • I/O Controller: iTE® I/O Controller Chip
  • H/W Monitoring:
    Voltage detection
    Temperature detection
    Fan speed detection
    Water cooling flow rate detection
    Fan fail warning
    Fan speed control
    * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.

    Noise detection

  • BIOS:
    1 x 256 Mbit flash
    Use of licensed AMI UEFI BIOS
    PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
  • Unique Features:
    Support for GIGABYTE Control Center (GCC)
    * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.

    Support for Q-Flash
    Support for Q-Flash Plus
    Support for Smart Backup

  • Bundled Software:
    Norton® Internet Security (OEM version)
    LAN bandwidth management software
  • Operating System: Support for Windows 11 64-bit
  • Form Factor: ATX Form Factor; 30.5cm x 24.4cm
