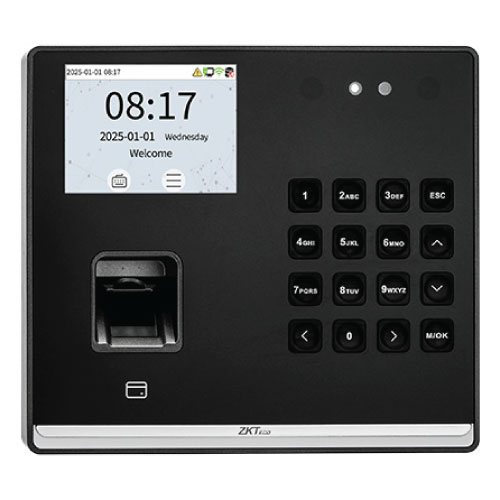

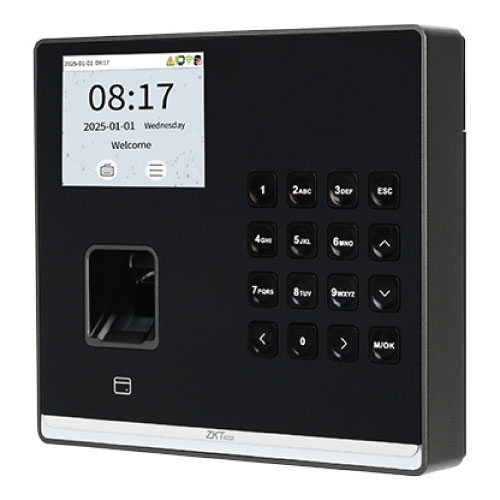

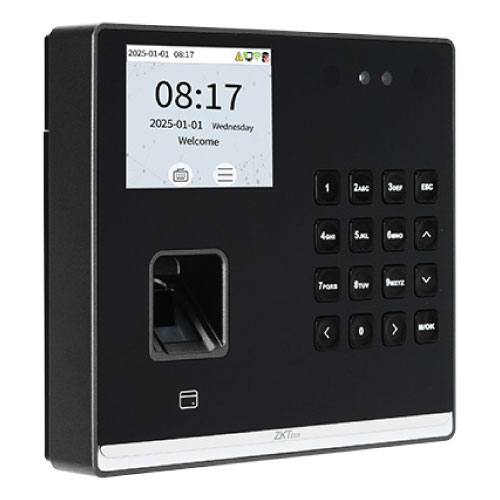

ZKTeco SenseFace M2F -LR Fingerprint Time Attendance & Access Control Terminal

Product Description

Model: SenseFace M2F-LR

Display: 2.8″@ TFT Color LCD Screen (320*240)

Camera: SenseFace M2F-LR: Binocular Camera @ 1MP

Operation System: Linux

Hardware: SenseFace M2F-LR: CPU: Dual Core@1GHz; RAM: 512MB; ROM: 8GB; Speaker: 8ohm @1W; Supplement Light: Yes; Physical Keypad: 16 Keys; Fingerprint Sensor: ZK Optical Sensor; Casing Color: Black and White

Authentication method: SenseFace M2F-LR: Fingerprint / Face / Card / Password (Physical Keypad)

Fingerprint Capacity: SenseFace M2F-LR: 1,000 (1:N) (Standard)

Face Capacity: SenseFace M2F-LR: 500 (1:N) (Standard)

Card Capacity: SenseFace M2F-LR: 1,000 (1:N) (Standard)

User Capacity: SenseFace M2F-LR: 1,000 (1:N) (Standard)

Transaction Capacity: 150,000 (1:N)

Max. User Password Length: 8 Digits

Biometric Authentication Speed: SenseFace M2F-LR: less than 1 sec (Fingerprint); less than 1.2 sec (Facial Authentication)

Touchless Biometric Recognition Distance: SenseFace M2F-LR: 50cm to 180cm (Facial Authentication)

False Acceptance Rate (FAR) %: SenseFace M2F-LR: FAR ≤0.02% (Visible Light Facial Authentication) ; FAR ≤ 0.0001% ( Fingerprint )

False Rejection Rate (FRR) %: SenseFace M2F-LR: FRR ≤ 0.05% (Visible Light Facial Authentication); FRR ≤ 0.1% (Fingerprint )

Biometric Algorithm: SenseFace M2F-LR: ZKFace V4.0; ZKFingerprint V13.0 (Standard) / V10.0 (Optional)

Card Type:

ID Card@125 kHz (Standard)
IC Card@13.56 MHz (Optional)

Standard Functions: ADMS, DST, Photo Capture, Event Photo Capture, Up to 14-digit User ID, Record Query, Schedule Bell, Tamper Switch Alarm, Automatic Status Switch, Multiple Authentication Methods, HTTPs / SSH Backend Access, T9 Keyboard (Input)

Optional Functions: IC Card, Wi-Fi, Backup Battery

Power Supply: DC 12V 3A

Backup Battery (Optional):

2,000 mAh (Lithium Battery)
Max. Operating Hours: 4 Hours
Max. Standby Hours: 7 Hours
Estimated Charging Time: 5 Hours

Operating Temperature: -5°C to 45°C

Operating Humidity: 10% to 90% RH (Non-condensing)

Dimensions: 154 mm*138 mm*34 mm (L*W*H)

Gross Weight: SenseFace M2F-LR: 1.03 kg

Supported Software:

Mobile App: ZKBio Zlink
Cloud-based Software: ZKBio Zlink
On-Premise Software: ZKBio Time

Installation: Wall-mount (Compatible with Asian Gang Box / Single Gang Box)

Certifications: ISO14001, ISO9001,CE, FCC, RoHS
