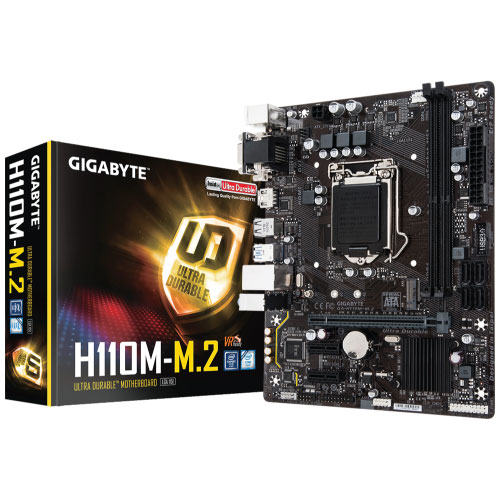

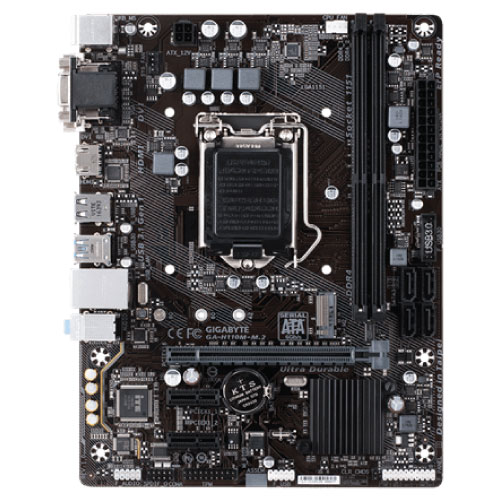

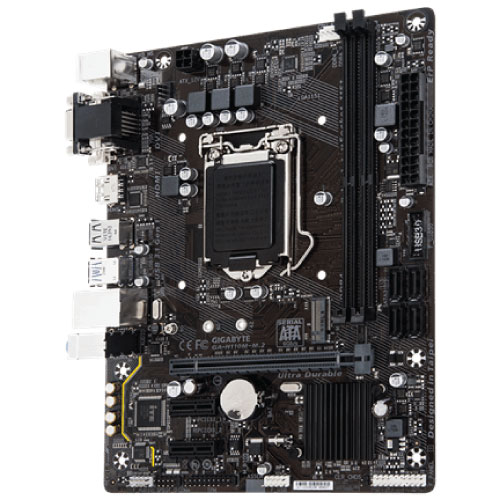

GIGABYTE INTEL GA-H110M-M.2 Motherboard

Product Description

• CPU:
  1. Support for 7^th/6^th Generation Intel^® Core™ i7 processors/Intel^® Core™ i5 processors/Intel^® Core™ i3 processors/Intel^® Pentium^® processors/Intel^® Celeron^® processors in the LGA1151 package
     * For 7^th Generation Intel^® Core™ processors support need to update the latest BIOS.
  2. L3 cache varies with CPU
• Chipset: Intel^® H110 Express Chipset
• Memory:
  1. 2 x DDR4 DIMM sockets supporting up to 32 GB of system memory
     * Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.
  2. Dual channel memory architecture
  3. Support for DDR4 2400/2133 MHz memory modules
  4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
  5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  6. Support for Extreme Memory Profile (XMP) memory modules
     * To support 2400 MHz or XMP memory, you must install a 7^th generation processor.
• Onboard Graphics:
  1. Integrated Graphics Processor – Intel^® HD Graphics support:
     1 x D-Sub port, supporting a maximum resolution of 1920×1200@60 Hz
     1 x DVI-D port, supporting a maximum resolution of 1920×1200@60 Hz
     * The DVI-D port does not support D-Sub connection by adapter.
     1 x HDMI port, supporting a maximum resolution of 4096×2160@24 Hz
     * Support for HDMI 1.4 version.
  2. Maximum shared memory of 512 MB
• Audio:
  1. Realtek^® ALC887 codec
  2. High Definition Audio
  3. 2/4/5.1/7.1-channel
     * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
  4. Support for S/PDIF Out
• LAN: Intel^® GbE LAN chip (10/100/1000 Mbit)
• Expansion Slots:
  1. 1 x PCI Express x16 slot, running at x16
     (The PCI Express x16 slots conform to PCI Express 3.0 standard.)
  2. 2 x PCI Express x1 slots
     (All of the PCI Express x1 slots conform to PCI Express 2.0 standard.)
• Storage Interface:
  Chipset:

  1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x2 SSD support)
  2. 4 x SATA 6Gb/s connectors
     * Refer to “1-7 Internal Connectors,” for the installation notices for the M.2 and SATA connectors.
• USB:
  Chipset:

  1. 4 x USB 3.1 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
  2. 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
• Internal I/O Connectors:
  1. 1 x 24-pin ATX main power connector
  2. 1 x 4-pin ATX 12V power connector
  3. 1 x CPU fan header
  4. 1 x system fan header
  5. 4 x SATA 6Gb/s connectors
  6. 1 x M.2 Socket 3 connector
  7. 1 x front panel header
  8. 1 x front panel audio header
  9. 1 x S/PDIF Out header
  10. 1 x USB 3.1 Gen 1 header
  11. 1 x USB 2.0/1.1 header
  12. 1 x serial port header
  13. 1 x Trusted Platform Module (TPM) header
  14. 1 x Clear CMOS jumper

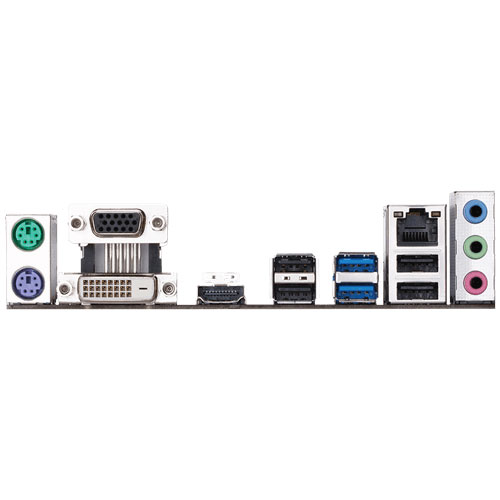

• Back Panel Connectors:
  1. 1 x PS/2 mouse port
  2. 1 x PS/2 Keyboard port
  3. 1 x D-Sub port
  4. 1 x DVI-D port
  5. 1 x HDMI port
  6. 2 x USB 3.1 Gen 1 ports
  7. 4 x USB 2.0/1.1 ports
  8. 1 x RJ-45 port
  9. 3 x audio jacks (Line In, Line Out, Mic In)
• I/O Controller: iTE^® I/O Controller Chip
• H/W Monitoring:
  1. Voltage detection
  2. Temperature detection
  3. Fan speed detection
  4. Overheating warning
  5. Fan fail warning
  6. Fan speed control
     * Whether the fan speed control function is supported will depend on the cooler you install.
• BIOS:
  1. 1 x 64 Mbit flash
  2. Use of licensed AMI UEFI BIOS
  3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
• Unique Features:
  1. Support for APP Center
     * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
     3D OSD
     @BIOS
     AutoGreen
     Cloud Station
     EasyTune
     Fast Boot
     ON/OFF Charge
     Smart Backup
     Smart Keyboard
     Smart TimeLock
     System Information Viewer
     USB Blocker
  2. Support for Q-Flash
  3. Support for Xpress Install
• Bundled Software:
  1. Norton^® Internet Security (OEM version)
  2. cFosSpeed
• Operating System:
  1. Support for Windows 10 64-bit (for 7^th Generation Intel^® processors)
  2. Support for Windows 10 64-bit/Windows 8.1 64-bit/Windows 7 32-bit/64-bit (for 6^th Generation Intel^® processors)
     * Please download the “Windows USB Installation Tool” from GIGABYTE’s website and install it before installing Windows 7.
• Form Factor: Micro ATX Form Factor; 22.6cm x 17.4cm
