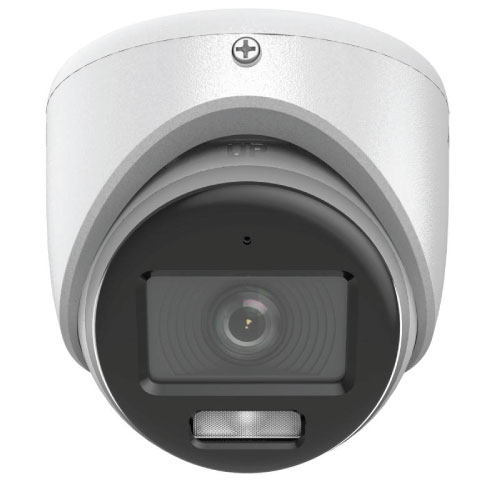

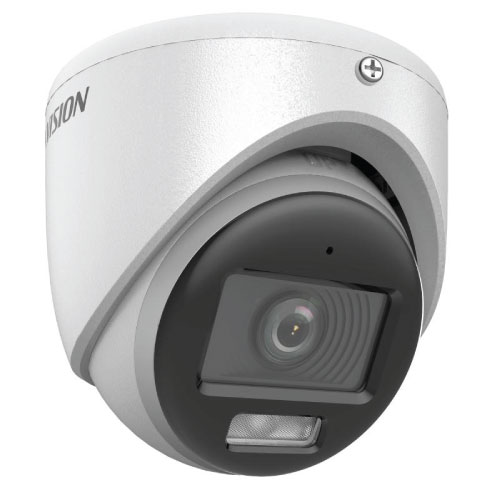

Hikvision DS-2CE70DF0T-LMFS 2MP Smart Hybrid Light ColorVu Fixed Dome Camera

Product Description

Camera

• Image Sensor2 MP CMOS
• Max. Resolution1920 (H) × 1080 (V)
• Min. Illumination0.001 Lux @ (F1.0, AGC ON), 0 Lux with white light
• Shutter TimePAL: 1/25 s to 1/50,000 s; NTSC: 1/30 s to 1/50,000 s
• Day & NightICR
• Angle AdjustmentPan: 0° to 360°,Tilt: 0° to 75°,Rotate: 0° to 360°
• Signal SystemPAL/NTSC

Lens

• Lens Type2.8 mm and 3.6 mm fixed focal lens
• Focal Length & FOV:

  2.8 mm, horizontal FOV: 105°, vertical FOV: 56°, diagonal FOV: 126°

  3.6 mm, horizontal FOV: 84°, vertical FOV: 46°, diagonal FOV: 98°

• Lens MountM12

Microphone

• Pickup DistanceIn a radius of up to 5 m
• Amount1

Illuminator

• Supplement Light TypeSmart, IR, White Light
• Supplement Light RangeIR: Up to 20 m,White Light: Up to 20 m


• Image Parameters SwitchSTD/HIGH-SAT/HIGHLIGHT
• Image SettingsBrightness, Sharpness, Anti-banding, AGC
• Frame Rate:

  TVI: 1080p @25 fps/30 fps

  CVI: 1080p @25 fps/30 fps

  AHD: 1080p @25 fps/30 fps

  CVBS: PAL/NTSC

• Day/Night ModeAuto/Color
• Wide Dynamic Range (WDR)Digital WDR
• Noise Reduction3D DNR/2D DNR
• Image Enhancement:

  DWDR,

  BLC,

  HLC,

  Global

• White BalanceAuto, Manual

Interface

• Video OutputSwitchable TVI/AHD/CVI/CVBS

General

• MaterialMetal
• Power12 VDC ± 25%, max. 2.9 W,*You are recommended to use one power adapter to supply the power for one camera.
• DimensionØ85.11 mm × 77.62 mm (Ø3.35″ × 3.05″)
• Approx. 320 g (0.71 lb.)
• Operating Condition-40 °C to 60 °C (-40 °F to 140 °F). Humidity 90% or less (non-condensing)
• CommunicationHIKVISION-C
• LanguageEnglish

Approval

• ProtectionIP67
