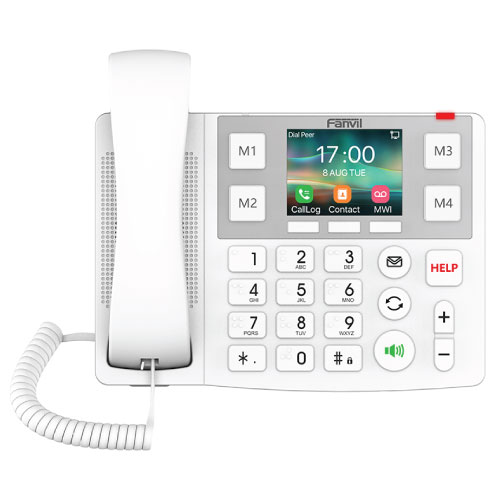

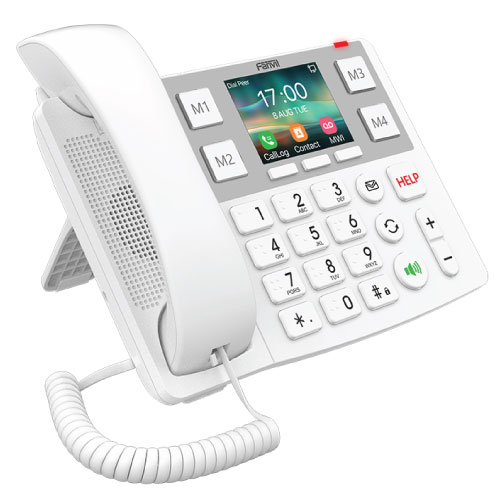

vFanvil X305 Color Display Big Button IP Phone Set
- Model: X305
- 3.5-inch (320×240) Color Display
- Support 6-way audio conference
- Built-in Bluetooth 4.2 and 2.4GHz/5GHz Wi-Fi
- Dual Gigabit ports, integrated PoE
Product Description
| Basic Information | ||
| Keys | 4 DSS keys 3 Soft-keys 3 Function keys (MWI, Redial, HELP) 10 Standard Phone Digit keys 2 Volume Control keys (Up/Down) 1 Hands-free key |
|
| Display | 3.5-inch (320×240) color screen | |
| Protocols/Standards | SIP2.0 over UDP/TCP/TLS RTP/RTCP/SRTP STUN DHCP IPv6 LLDP CDP PPPoE 802.1x L2TP OpenVPN SNTP FTP/TFTP HTTP/HTTPS TR-069 AES128 & AES256 |
|
| Operating System | Linux | |
| Ports and Connectivity | ||
| USB | USB2.0 Port x1: Standard A, connect with flash driver & USB headset | |
| Ethernet Port | RJ45 Port x2: Network x1, PC x1 (Bridged to Network) | |
| PoE | Yes | |
| Wi-Fi | Built-in Wi-Fi 2.4G, 802.11 b/g/n 5G, 802.11 a/n |
|
| Bluetooth | Bluetooth 4.2 | |
| Codec support | ||
| Voice Codecs | G.722 and Opus | |
| Telephony Features | ||
| Number of Lines | 2-SIP | |
| Contact Capacity | 1000 | |
| Callers log | 600 | |
| Redail | Yes | |
| Recording | Yes (Through Server) | |
| Conferencing | 6-way audio conference | |
| HD Voice | Yes | |
| Power | ||
| Power Input | DC5V / 2A or PoE | |
| Power Consumption | Power Consumption (PoE):1.65W~9.07W Power Consumption (Adapter):1.09W~6.76W |
|
| Physical Specification | ||
| Dimensions | Desktop Stand (Angles 1: 45 degree): 236×157.4×162.4mm Desktop Stand (Angles 2: 55 degree): 236×142.3x179mm Wall-mounted: 236×98.9×204.2mm | |
| Color | White | |
| Foot Stand | Yes | |
| Wall Mounting | Yes | |
| Warranty | ||
| Warranty | 1 year | |
