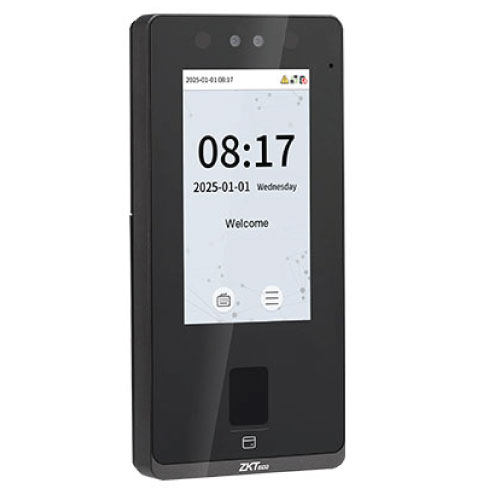

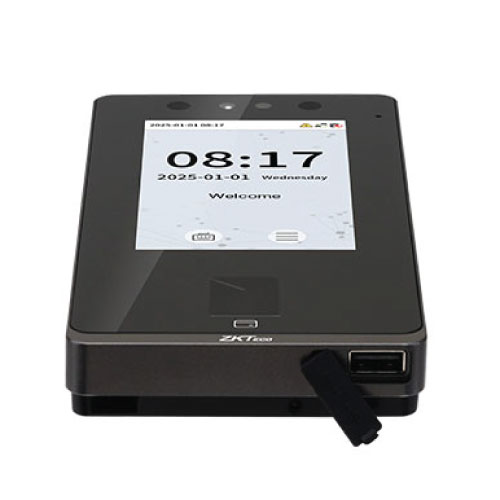

ZKTeco SenseFace 4A Access Control Terminal

Product Description

Model: SenseFace 4A

Display: 4.3″@ TFT Color Touch LED Screen (272*480)

Camera: WDR Binocular Camera @ 1MP

Operation System: Linux

Hardware:
CPU: Dual Core@1GHz
RAM: 512MB; ROM: 8GB
Speaker: 8ohm @1W
Microphone: *1 (Sensitivity: -42 dB/ Omni-directional/ Signal-to-Noise Ratio: 58 dB/
Impedance: 2.2kΩ)
Supplement Light: No
Fingerprint Sensor: In-Glass Fingerprint (Z-ID) (SenseFace 4A)

Authentication Method: Fingerprint / Face / Card / Password (Virtual Keypad)

Fingerprint Template Capacity: 8,000 (1:N) (Standard)

Face Template Capacity: 6,000 (1:N) (Standard)

Card Capacity: 8,000 (1:N) (Standard)

User Capacity: 8,000 (1:N) (Standard)

Transaction Capacity: 200,000 (1:N)

Max. User Password Length: 8 Digits

Biometric Verification Speed: less than 0.5 sec (Fingerprint) ; less than 0.35 sec (Facial Authentication)

Touchless Biometric Recognition Distance: 30cm to 200cm (Facial Authentication)

False Acceptance Rate (FAR) %: FAR ≤ 0.01% ( Visible Light Facial Authentication); FAR ≤ 0.0001% ( Fingerprint )

False Rejection Rate (FRR) %: FRR ≤ 0.02% ( Visible Light Facial Authentication); FRR ≤ 0.01% ( Fingerprint )

Biometric Algorithm: ZKFace V4.0 ZKFingerprint V13.0 (Standard) / V10.0 (Optional)

Card Type:
ID Card@125 kHz (Standard)
IC Card@13.56 MHz (Optional)

Communication:
TCP / IP*1
Wi-Fi (IEEE802.11b/g/n/ax) @ 2.4 GHz (Optional)
Wiegand (Input or Output)*1
RS485: ZKTeco RS485*1
USB: Type A (USB Drive Only)*1
Aux Inputs *1, Electric Lock*1, Door Sensor*1, Exit Button*1, 12V Output*1

Standard Functions: ADMS, DST, Photo Capture, Event Photo Capture, Up to 14-digit User ID, Access Levels, Groups, Holidays, Anti-Passback, Record Query, Schedule Bell, Tamper Switch Alarm, Automatic Status Switch, Multiple AuthenticationMethods, SIP Client (Version 2.0), ONVIF (Compatible with Profile S, Profile T, Profile G, Profile C, Profile Q & Profile A), AC Push and TA Push Protocol Switch, HTTPs / SSH Backend Access, T9 Keyboard (Input)

Optional Functions: IC Card, Wi-Fi, Wireless Doorbell

Access Control Interface: RS485 ( RS485 Card Reader / Biometric Reader)

Video Intercom:
Video Intercom (ZKTeco Private Protocol via TCP/lP)
Support Devices:
Standalone Terminal: SenseFace Series;
Indoor Monitor: VT07-B01, VT07-B01-W

Video Intercom (Standard SIP Protocol)
Support Devices:
Standalone Terminal: SenseFace series;
Indoor Monitor: VT07-B22L, VT07-B26L-W;
Software: ZKBio CVAccess, BioTalk Pro;
Mobile App: ZKBio Zlink, ZKBio Zexus

Power Supply: DC 12V 3A

Operating Temperature: -5°C to 45°C

Operating Humidity: 10% to 90% RH (Non-condensing)

Dimensions: 175.00 mm * 84.50 mm * 21.65 mm (L*W*H)

Net Weight: 0.264 Kg

Supported Software:
On-Premise Software: ZKBio CVAccess (AC PUSH) & ZKBio Time (TA PUSH)
Cloud-based Software: ZKBio Zlink (Supports Web Portal & Mobile App)

Installation: Wall-mount (Compatible with Asia Gang Box / Single Gang Box)

Ingress Protection Rating: IP65 (waterproof and dustproof)

Certifications: ISO14001, ISO9001, CE, FCC, RoHS
