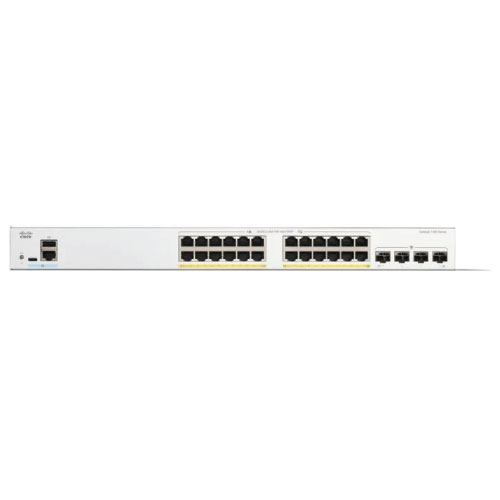

Cisco C1300-24FP-4G 24 Port Gigabit POE Switch
- Brand: Cisco
- Model: C1300-24FP-4G
- PoE+ Ports: 24x 10/100/1000
- Power Budget: 370W
- Uplink Ports: 4x Gigabit SFP
Product Description
| Capacity in millions of packets per second (mpps) (64-byte packets) | 41.66 |
| Switching capacity in gigabits per second (Gbps) |
56.0 |
| Power dedicated to PoE | 375W |
| Number of ports that support PoE | 24 |
| System power consumption |
110V=36.9W 220V=37.2W |
| Power consumption (with PoE) |
110V=452.3W 220V=436.9W |
| Heat dissipation (BTU/hr) | 1542.3 |
| Idle Power |
110V=21.7W 220V=22.5W |
| Total system ports | 28 x Gigabit Ethernet |
| RJ-45 ports | 24 x Gigabit Ethernet |
| Combo ports (RJ-45 + Small Form-Factor Pluggable [SFP]) | 4 x SFP |
| Packet buffer | 1.5 MB |
| Unit dimensions (W x D x H) |
444.3 x 350 x 43.94 mm (17.49 x 13.77 x 1.73 in) |
| Unit weight | 4.6 kg (10.14 lb) |
| Fan (number) | 1 |
| Acoustic noise | 25°C: 39 dBA |
| MTBF at 25°C (hours) | 500,161 |
Cisco Catalyst 1300 C1300-24FP-4G Managed Switch – High-Performance 24-Port Full PoE Networking Solution
The Cisco Catalyst 1300 C1300-24FP-4G is a powerful and scalable managed switch designed to meet the growing demands of modern business networks. With advanced Layer 2 features, high PoE power capacity, and robust performance, this switch is ideal for enterprises, offices, surveillance systems, and high-density network environments requiring reliable connectivity and efficient power delivery.
Equipped with a switching capacity of 56 Gbps and a forwarding rate of 41.66 million packets per second (mpps), the Catalyst 1300 ensures smooth and high-speed data transmission across all connected devices. It is engineered to handle bandwidth-intensive applications such as VoIP, IP surveillance, and wireless networking without performance bottlenecks.
The switch features 24 Gigabit Ethernet ports with full PoE support, delivering a total PoE power budget of 375W. This allows you to power multiple devices such as IP cameras, wireless access points, and IP phones directly through the network cable, eliminating the need for separate power sources. Additionally, it includes 4 x 1G SFP uplink ports, providing flexible fiber connectivity for extended network expansion and high-speed uplinks.
Designed for efficiency and reliability, the Cisco C1300-24FP-4G operates with optimized power consumption and thermal management. Even under full PoE load, it maintains stable performance while ensuring efficient energy usage. The built-in cooling system with a single fan ensures consistent operation, while maintaining a reasonable acoustic noise level of 39 dBA at 25°C.
With a packet buffer of 1.5 MB, the switch effectively manages traffic bursts and reduces packet loss, ensuring smooth data flow across the network. Its durable hardware design is backed by a strong MTBF rating of over 500,000 hours, providing long-term reliability and minimal downtime.
The switch comes in a standard rack-mountable form factor with dimensions of 444.3 x 350 x 43.94 mm and a solid build weight of 4.6 kg, making it suitable for professional IT environments and server rooms.
