| Basic Information |
|
| Brand |
Gigabyte |
| Model |

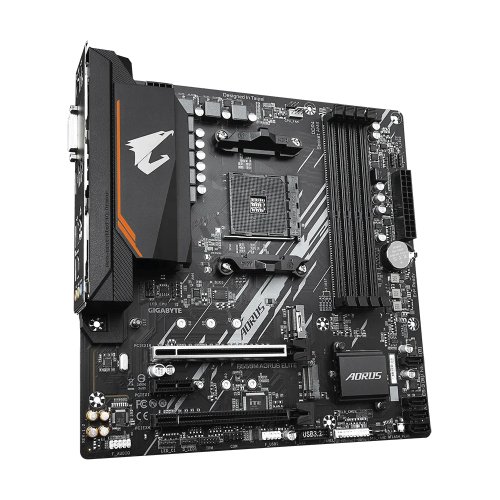

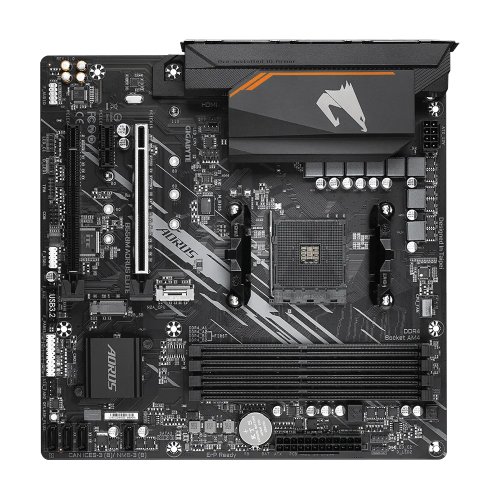

Gigabyte B550M Aorus Elite |
| Supported CPU |
AMD Ryzen 5000/4000G Series & AMD Ryzen 3rd Generation Processors |
| Chipset |
AMD B550 |
| BIOS |
1 x 256 Mbit flash |
| Use of licensed AMI UEFI BIOS |
| PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Form Factor |
Micro ATX Form Factor; 24.4cm x 24.4cm |
| Audio |
Audio Chipset: Realtek ALC887 |
| Audio Channel: 2/4/5.1/7.1 |
|
|
| Expansion Slots |
|
| PCI |
1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: |
| 3rd Generation AMD Ryzen processors support PCIe 4.0 x16 mode |
| New Generation AMD Ryzen with Radeon Graphics processors support PCIe 3.0 x16 mode |
| 1 x PCI Express x16 slot (PCIEX2), integrated in the Chipset: |
| Supporting PCIe 3.0 x2 mode |
| 1 x PCI Express x16 slot (PCIEX1_2), integrated in the Chipset: |
| Supporting PCIe 3.0 x1 mode |
| 1 x PCI Express x1 slot (PCIEX1_1), integrated in the Chipset: |
| Supporting PCIe 3.0 x1 mode |
| M.2 Socket |
1 x PCI Express x16 slot (PCIEX16), integrated into the CPU: |
| 3rd Generation AMD Ryzen processors support PCIe 4.0 x16 mode |
| 3rd Generation AMD Ryzen with Radeon Graphics processors support PCIe 3.0 x16 mode |
| 1 x PCI Express x16 slot (PCIEX4), integrated into the Chipset: |
| Supporting PCIe 3.0 x4 mode |
| 1 x PCI Express x1 slot (PCIEX1), integrated into the Chipset: |
| Supporting PCIe 3.0 x1 mode |
|
|
| Graphics: |
|
| Graphics |
Integrated into the 3rd Generation AMD Ryzen with Radeon Graphics processors: |
| 1 x DVI-D port, supporting a maximum resolution of 1920×1200@60 Hz |
| 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz |
| Max Shared Memory |
16 GB |
|
|
| Connector & Ports: |
|
| HDMI |
1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz |
| DVI-D (s) |
1 x DVI-D port, supporting a maximum resolution of 1920×1200@60 Hz |
| USB (s) |
4 x USB 3.2 Gen 1 ports on the back panel |
| Chipset: |
| 2 x USB 3.2 Gen 1 ports available through the internal USB header |
| 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header) |
| LAN Port (s) |
Realtek GbE LAN chip (1000 Mbit/100 Mbit) |
| Supported Storage |
1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type |
| 2242/2260/2280/22110 SSDs: |
| 3rd Generation AMD Ryzen™ processors support SATA and PCIe 4.0 x4/x2 SSDs |
| 3rd Generation AMD Ryzen™ with Radeon™ Graphics processors support SATA and PCIe 3.0 |
| x4/x2 SSDs |
| 1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type |
| 2242/2260/2280 SSDs: |
| Supporting SATA and PCIe 3.0 x2 SSDs |
| 4 x SATA 6Gb/s connectors, integrated in the Chipset: |
| Support for RAID 0, RAID 1, and RAID 10 |
| Audio |
Realtek ALC887 codec |
| High Definition Audio |
| 2/4/5.1/7.1-channel |
| Internal I/O Ports |
1 x 24-pin ATX main power connector |
| 1 x 8-pin ATX 12V power connector |
| 1 x CPU fan header |
| 2 x system fan headers |
| 2 x addressable LED strip headers |
| 2 x RGB LED strip headers |
| 1 x CPU cooler LED strip/RGB LED strip header |
| 2 x M.2 Socket 3 connectors |
| 4 x SATA 6Gb/s connectors |
| 1 x front panel header |
| 1 x front panel audio header |
| 1 x USB 3.2 Gen 1 header |
| 1 x USB 2.0/1.1 headers |
| 1 x serial port header |
| 1 x Q-Flash Plus button |
| 1 x Clear CMOS jumper |
| TPM (Trusted Platform Module ) |
1 x Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S module only) |
|
|
| Memory: |
|
| Type |
Dual-Channel Architecture |
| Slots |
4 x DDR4 memory slots |
| Supported Memory |
3rd Gen AMD Ryzen Processors: |
| Support for DDR4 4000(O.C.) / 3600(O.C.) / 3333(O.C.)/ 3200/ 2933/ 2667/ 2400/ 2133 MHz memory modules |
| New Generation AMD Ryzen with Radeon Graphics processors: |
| Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200 /2933 /2667 /2400 /2133 MHz memory modules |
| Maximum Memory |
support up to 128GB |
|
|
| Others: |
|
| Special Features |
Support for APP Center |
| Support for Q-Flash |
| Support for Q-Flash Plus |
| Bundled Software |
Support for Windows 10 64-bit |
|
|
| Warranty Info |
|
| Years |
3 Year |
|
|
|
|
|
|
|
|
